Home / Non-Illuminated Push Button, Yellow

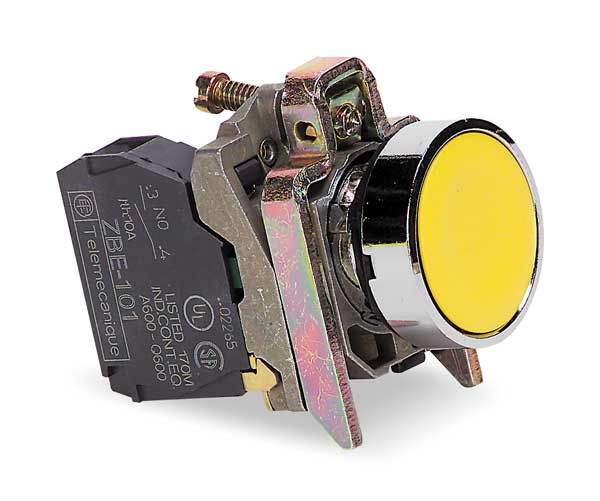

Non-Illuminated Push Button, Yellow

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Push Button, 22 mm, Momentary Push Action, Flush Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Chrome Plated Metal, Color Yellow, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 65, Legend No Legend, Standards CE, CSA, UL, Terminal Connection Pressure Plate, Material Metal
graingerSKU: 6HK44, mscSKU: , zoro_no: G1430475, mongo_id: 65bbe86522d7a989a98f0ef5

Web Price

$49.11 / each

Qty

Product Details

Action Momentary Push

Ambient Air Temperature For Operation -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Basic Material Metal

Bezel Chrome Plated Metal

Bezel Material Chromium plated metal

Color Yellow

Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mmÃÂ² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mmÃÂ² without cable end IEC 60947-1

Contact Form 1NO

Contact Operation Slow-break

Contact Rating 10A @ 600V AC

Contact Type and Composition 1 NO

Contacts Material Silver alloy (Ag/Ni)

Contacts Usage Standard contacts

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Depth 2.05 in (52 mm)

Device Presentation Complete product

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Reliability Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Fixing Collar Material Zamak

Head Material Metal

Head Type Standard

Height 47 mm

IK Degree Of Protection IK06 IEC 50102

IP Degree Of Protection IP66 IEC 60529; IP67; IP69; IP69K

IP Rating 65

Legend No legend

Length 52 mm

Material metal

Mechanical Durability 10000000 cycles

Mounting Diameter 0.87 in (22 mm)

NEMA Contact Rating Designation A600/Q600

NEMA Degree Of Protection NEMA 13; NEMA 4X

NEMA Rating 1, 12, 13, 2, 3, 4, 4X

Number of Operators 1

Operating Force 3.8 N NO changing electrical state

Operating Travel 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)

Operator Profile Yellow flush, unmarked

Overvoltage Category Class I IEC 60536

Package Quantity 1

Positive Opening Without

Product Certifications UL Listed; DNV; LROS (Lloyds register of shipping); BV; GL; CSA

Product Or Component Type Push-button

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Resistance To High Pressure Washer 1015.26 psi (7000000 Pa) 131ÃÂ°F (55ÃÂ°C) 0.1 m

Shape Round

Shape Of Screw Head Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1

Size 22 mm

Standards CE, CSA, UL

Terminal Connection Pressure Plate

Terminals Description ISO nÃÂ°1 (13-14)NO

Tightening Torque 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1

Type of Operator Flush Button

Vibration Resistance 5 gn 2 to 500 Hz)IEC 60068-2-6
