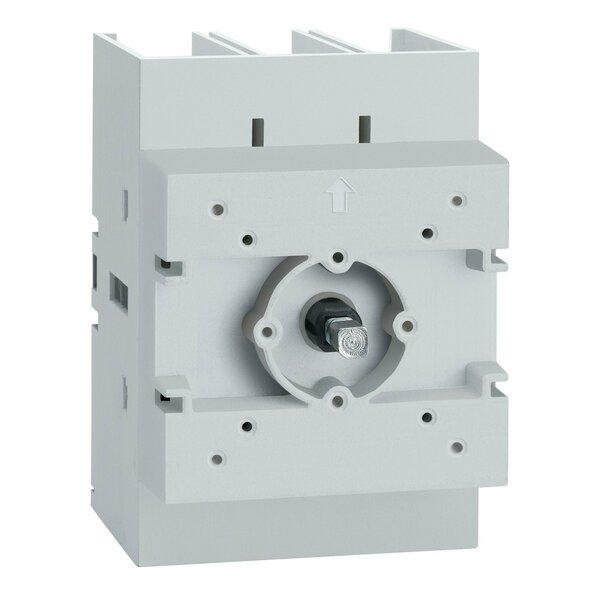

Nonfusible Disconnect Switch, 63 A, 690V AC, 3 pole, NEMA 1, 12, 3R, 4, 4X

SKU
Brand Schneider Electric
Categories
Description Disconnect Switch, Contact Form 3PST-NO, Current Rating 63 A, Depth 4 in, Duty Standard, For Fuse Class Not Applicable, Height 2 3/4 in, Horsepower @ 240V AC 20 hp, Horsepower @ 480V AC 40 hp, Horsepower @ 600V AC 40 hp, Housing Material Non-Metallic, Includes Door, IP Rating IP20, Mounting Style Door, Number of Poles 3, Number of Wires 3, Phase Three, Protection Method Non-Fusible, Resistance Properties Fire-Resistant
graingerSKU: 615A68, mscSKU: , zoro_no: G0859039, mongo_id: 65bbe7ee9a749db82276505d

Web Price

$222.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-55ÃÂ°C

Amps 63 A

Breaking Capacity 94.5 A 690 V AC-21A) || 189 A 690 V AC-22A) || 504 A 690 V AC-23A)

Color Gray

Connections - Terminals power circuit screw clamp terminals 50-50 mmÃÂ² solid || power circuit screw clamp terminals 70-70 mmÃÂ² flexible - without cable end

Contact Form 3NO

Contacts Type And Composition 3 NO

Conventional Free Air Thermal Current 63 A (at 131ÃÂ°F (55ÃÂ°C))

Country of Origin (subject to change) Italy

Current Rating 63 A

Depth 3.9 in

Device Short Name VLS3P

Duty General

Electrical Durability 30000 cycles AC-21

Fire Resistance 960ÃÂ°C IEC 60695-2-11

For Fuse Class Not Applicable

Height 2.8 in

Horsepower @ 240V AC 20 hp

Horsepower @ 480V AC 40 hp

Horsepower @ 600V AC 40 hp

Housing Material Non-Metallic

HP_ 20 HP @ 240V AC, 40 HP @ 480V AC, 40 HP @ 600V AC

Iec Rated Operational Power in W 30 kW 400 V AC-23A; 45 kW 500 V AC-23A; 45 kW 690 V AC-23A)

IEC Terminal Connection Power circuit screw clamp terminals 0.08 inÃÂ² (50 mmÃÂ²) solid; Power circuit screw clamp terminals 0.11 inÃÂ² (70 mmÃÂ²) flexible - without cable end

Includes Door

Intermittent Duty Class class 120 - 60 %

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating 20

Making Capacity 630 A 690 V AC-23A || 94.5 A 690 V AC-21A || 189 A 690 V AC-22A

Material Non-Metallic

Mechanical Durability 30000 cycles

Mechanical Robustness vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Mounting Style Door

Mounting Support door

NEMA Enclosure Type 1, 12, 3R, 4, 4X

Network Frequency 50/60 Hz

Network Type AC

Number of Poles 3

Number of Wires 3

Package Quantity 1

Performance Level high performance

Phase 3

Poles Description 3P

Product Certifications cULus || GL

Product Name TeSys VARIO LS

Product Or Component Type switch body

Protection Method Nonfusible

Range TeSys

Rated Conditional Short-Circuit Current 50 kA 400 V 63 A gG

Rated Operational Current 60 A Ue: 600 V UL98; 63 A AC-21A Ue: 400 V; 63 A AC-21A Ue: 500 V; 63 A AC-21A Ue: 690 V; 63 A AC-22A Ue: 400 V; 63 A AC-22A Ue: 500 V; 63 A AC-22A Ue: 690 V; 63 A AC-23A Ue: 400 V; 63 A AC-23A Ue: 500 V; 47 A AC-23A Ue: 690 V

Rated Operational Power In W 30 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)

Rated Operational Voltage 690 V AC 50/60 Hz

Resistance Properties Fire-Resistant

Short Circuit Current Rating Fuse J 60 A maximum: 50 kA at 600 V AC

Standards UL/CSA

Tightening Torque power circuit 5-6 N.m screw clamp terminals

UL 98 Certification Yes

UL Maxium Horsepower Ratings 20 hp 200/208 V AC; 20 hp 240 V AC; 40 hp 480 V AC; 40 hp 600 V AC; 3 hp 120 V AC; 7.5 hp 240 V AC

UL Rated Operational Voltage 600 V AC 50/60 Hz UL 508

UL Wire Size AWG 12 to AWG 1 copper

Use Isolate or Disconnect A Load

Voltage 690V AC

Voltage Rating 690V AC

Width 2.8 in

[Icm] Rated Short-Circuit Making Capacity 3550 A 690 V

[Icw] Rated Short-Time Withstand Current 2500 A 690 V 1 s

[Ie] Rated Operational Current 60 A Ue: 600 V UL98 || 63 A AC-21A Ue: 400 V || 63 A AC-21A Ue: 500 V || 63 A AC-21A Ue: 690 V || 63 A AC-22A Ue: 400 V || 63 A AC-22A Ue: 500 V || 63 A AC-22A Ue: 690 V || 63 A AC-23A Ue: 400 V || 63 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V

[Ithe] Conventional Enclosed Thermal Current 63 A

[Ith] Conventional Free Air Thermal Current 63 A 55ÃÂ°C

[Ue] Rated Operational Voltage 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
