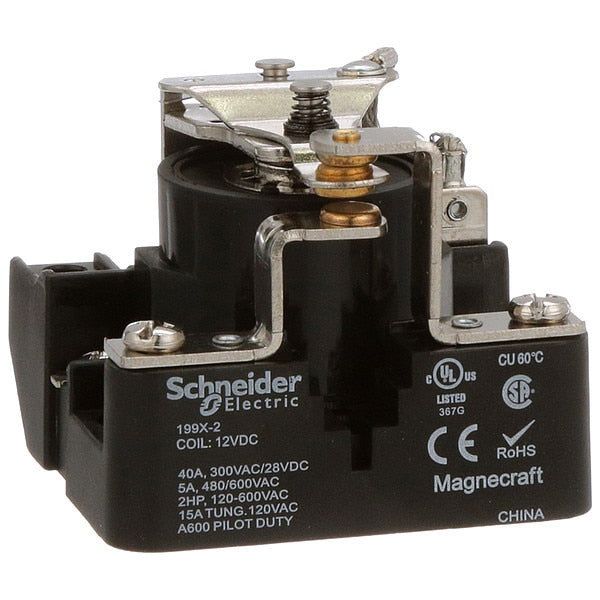

Open Power Relay, 5 Pin, 12VDC, SPDT

SKU
Brand Schneider Electric
Categories
Description Open Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form SPDT, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 5, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 2.49 in, Body Height 2.49 in, Body Width 2.5 in, Coil Resistance 70 ohm, Compatible with Grainger Part Number 6CVA2
graingerSKU: 6CUU9, mscSKU: , zoro_no: G1568944, mongo_id: 65bbe5a83aaddbd5a9fd9a08

Web Price

$42.74 / each

Qty

Product Details

AC Contact Rating - Relay 40A @ 300V

Ambient Air Temperature for Operation -67 to 131ÃÂ°F (-55 to 55ÃÂ°C)

Ambient Air Temperature for Storage -67 to 212ÃÂ°F (-55 to 100ÃÂ°C)

Base Shape Square

Base Type Panel

Body Depth 2.49 in

Body Depth - Relay 2.43 in

Body Height 2.49 in

Body Height - Relay 2.18 in

Body Width 2.5 in

Body Width - Relay 2.5 in

Coil Rating 10.0VA, 4.0W

Coil Resistance 70 ohm

Coil Voltage 12V DC

Coil Voltage Type DC

Coil Volts 12V DC

Compatible Manufacturer Part Number 50-1289-P

Compatible with Manufacturer Model Number 50-1289-P

Compatible with Manufacturer Model Number [NEW] 50-1289-P

Compatible with Manufacturer Part Number 50-1289-P

Contact Amp Rating (Resistive) 40A @ 300VAC/28VDC

Contact Composition 1 NC + 1 NO

Contact Form SPDT

Contact Form - Relay SPDT

Contact Material Silver Alloy

Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V

Contact Rating (DC) 40 A @ 28V

Contacts Material Silver alloy contacts

Country of Origin (subject to change) China

Cover Type Open cover

Current Rating 40 A

DC Contact Rating - Relay 40A @ 28V

Dielectric Strength 1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles

Dimensions 2.18H, 2.50W, 2.43D

Drop-out Voltage Threshold >= 0.1 Uc AC/DC

Electrical Connection Screw Terminal

Electrical Connection - Power Relay Screw

Electrical Connection Type Screw

Electrical Durability 100000 cycles resistive DC load

Electrical Operating Durability 100,000

Environmental Protection Open

Features Riveted Construction

Frequency 50/60 Hz

Horsepower @ 120V AC 2 hp

Horsepower @ 240V AC 2 hp

HP @ 120V 1 1/2

HP @ 240V 1 1/2

Hz - Electrical 50/60 Hz

Hz_ 50/60

Input Voltage 12V DC

Item - Relay Open Power Relay

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 600V DC

Minimum Operating Temperature -67 Degrees F

Minimum Switching Current 1,000 mA

Motor Power HP 2 hp 120...600 V AC 50/60 Hz

Motor Rated Yes

Mounting Panel

Mounting - Relay Surface

Mounting Style Surface

Number of Pins 5

Number of Pins - Relay 5

Number of Poles 1

Operating Current 15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 5 A at 480V AC (Resistive Load), 5 A at 600V AC (Resistive Load)

Overall Depth 2.06 in

Overall Height - Relay 2.18 in

Package Quantity 1

Pins 5

Power Consumption 4 W, 10 VA

Power Consumption - Relay 10.0 W

Power consumption in VA 10 VA AC

Power consumption in W 4 W DC

Product Certifications UL Listed; CSA; CE

Product Type Power relay

Rated Operational Current 40 A at 300 V AC (on resistive load) conforming to UL; 40 A at 28 V DC (on resistive load) conforming to UL; 5 A at 480 V AC (on resistive load) conforming to UL; 5 A at 600 V AC (on resistive load) conforming to UL; 15 A at 120 V AC (tungsten filament) conforming to UL

Rated Operational Voltage 6...600 V AC 50-60 Hz; 6...250 V DC

Relay Mounting Style Surface

Response Time 30 msec

Sealing Open

Series 199 Power Series

Socket Code Configurator Surface / Square / 5

Standards CE Certified, CSA Certified, UL Listed

Terminal Tightening Torque 10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)

Voltage Range 0.85...1.1 Un AC/DC

Weight 0.6

Wire Range AWG 14
