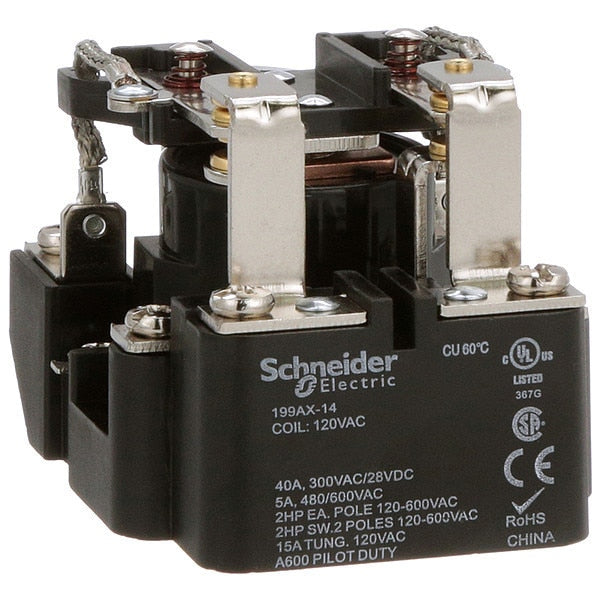

Open Power Relay, Surface Mounted, DPDT, 120V AC, 8 Pins, 2 Poles
Open Power Relay, Surface Mounted, DPDT, 120V AC, 8 Pins, 2 Poles

Open Power Relay, Surface Mounted, DPDT, 120V AC, 8 Pins, 2 Poles

  • Schneider Electric
  • Open Power Relay, Base Shape Octal, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 8, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 3.13 in, Body Height 3.13 in, Body Width 2.5 in, Coil Resistance 290 ohm, Compatible with Grainger Part Number 6CVA2

    graingerSKU: 6CUT4, mscSKU: , zoro_no: G3232941, mongo_id: 65bbe78f9a749db822742cde

Web Price
$50.56 / each
Qty

Product Details

40A @ 300V
-67 to 131°F (-55 to 55°C)
-67 to 212°F (-55 to 100°C)
Octal
Panel
3.13 in
3.12 in
3.13 in
2.31 in
2.5 in
2.5 in
Yes
10.0VA, 4.0W
290 ohm
120V AC
AC
120V AC
6CVA2
50-1289-P
50-1289-P
50-1289-P
50-1289-P
40A @ 300VAC/28VDC
2 C/O
DPDT
DPDT
Silver Alloy
15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V
40 A @ 28V
Silver alloy contacts
China
Open cover
40 A
40A @ 28V
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
2.31H, 2.50W, 3.12D
>= 0.1 Uc AC/DC
Screw Terminal
Screw
Screw
50000 cycles resistive
50,000
Open
Riveted Construction
50/60 Hz
2 hp
2 hp
1 1/2
1 1/2
50/60 Hz
50/60
120V AC
Open Power Relay
131 Degrees F
600V AC
-67 Degrees F
1,000 mA
2 hp 120...600 V AC 50/60 Hz
Yes
Panel
Surface
Surface
8
8
2
15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 5 A at 480V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
2.31 in
2.31 in
1
8
4 W, 10 VA
10.0 VA
10 VA AC
4 W DC
UL Listed; CSA; CE
Power relay
40 A at 300 V AC (on resistive load) conforming to UL; 40 A at 28 V DC (on resistive load) conforming to UL; 5 A at 480 V AC (on resistive load) conforming to UL; 5 A at 600 V AC (on resistive load) conforming to UL; 15 A at 120 V AC (tungsten filament) conforming to UL
6...600 V AC 50-60 Hz; 6...250 V DC
Surface
30 msec
Open
199 Power Series
Surface / Octal / 8
CE Certified, CSA Certified, UL Listed
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
0.85...1.1 Un AC/DC
0.6
AWG 14
