Home / Open Power Relay, Surface Mounted, DPDT, 120V AC, 8 Pins, 2 Poles

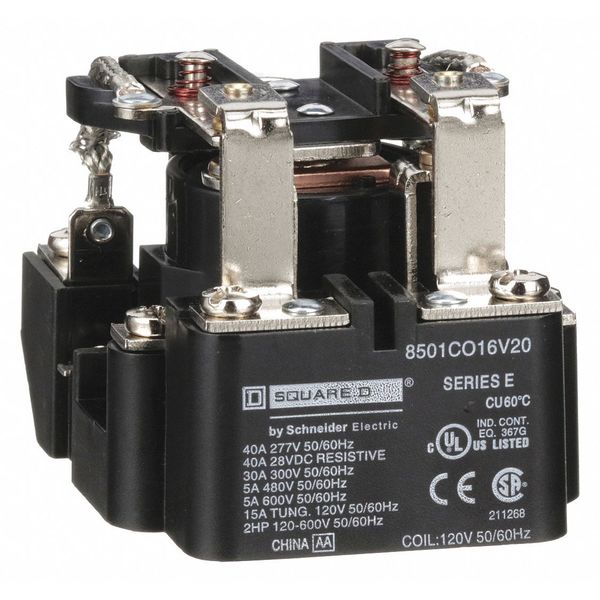

Open Power Relay, Surface Mounted, DPDT, 120V AC, 8 Pins, 2 Poles

Open Power Relay, Surface Mounted, DPDT, 120V AC, 8 Pins, 2 Poles

  • Schneider Electric
  • Open Power Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 30 A, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, Number of Pins 8, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 300V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Through Panel, Body Depth 2.31 in, Body Height 3.12 in, Body Width 2.5 in, Contact Material Silver Tin Oxide

    graingerSKU: 2DR61, mscSKU: , zoro_no: G0556595, mongo_id: 65bbe7ba9a749db822751271

Web Price
$97.90 / each
Qty

Product Details

40A @ 300V
-22 to 122°F (-30 to 50°C)
Square
2.31 in
3.13 in
3.12 in
2.31 in
2.5 in
2.5 in
8501
10.0VA, 2.0W
120V AC
AC
120V AC
40A @ 277VAC/28VDC
2 NO/2 NC
DPDT
DPDT
Silver Tin Oxide
30 A
40 A @ 300V
40 A @ 28V
120 V AC 50/60 Hz
China
30 A
40A @ 28V
2.31 in (58.67 mm)
Suited for controlling small single phase motors and other light loads
2.31H, 2.50W, 3.13D
Screw Clamp
Screw Clamp
Screw
Open
Not Applicable
Conveyor and Material Handling Applications, Electric Heater, Pumping
50/60 Hz
3.12 in (79.25 mm)
1 1/2 hp
2 hp
2.0 hp
2
2
50/60 Hz
50/60
120V AC
Open Power Relay
122 Degrees F
600V AC
-22 Degrees F
Yes
Panel
Surface
Through Panel
panel mounting
8
8
2
-22-122°F
3.12 in
2.31 in
1
1 phase
8
10 VA
10.0 VA
UL listed file E78351 CCN NLDX; CSA; CE
Power relay
Surface
Open
8501C Series
type C
Surface / Square / 8
CE Certified, CSA Certified, UL File No. E78351 CCN NLDX
None
600 V AC
Screw clamp terminal
11 to 15 lbf.in (1.24 to 1.69 N.m)
2.5 in (63.50 mm)
AWG 10 copper
