Home / Open Power Relay, Surface Mounted, DPST-NO, 12V DC, 6 Pins, 2 Poles

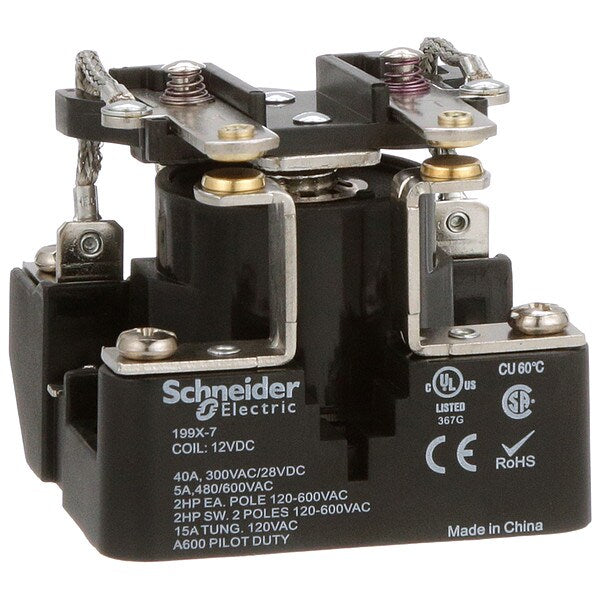

Open Power Relay, Surface Mounted, DPST-NO, 12V DC, 6 Pins, 2 Poles
Open Power Relay, Surface Mounted, DPST-NO, 12V DC, 6 Pins, 2 Poles

Open Power Relay, Surface Mounted, DPST-NO, 12V DC, 6 Pins, 2 Poles

  • Schneider Electric
  • Open Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPST-NO, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 6, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 2.08 in, Body Height 2.49 in, Body Width 2.5 in, Coil Resistance 70 ohm, Compatible with Grainger Part Number 6CVA2

    graingerSKU: 6CUV1, mscSKU: , zoro_no: G2728232, mongo_id: 65bbe85f22d7a989a98ee79c

Web Price
$45.99 / each
Qty

Product Details

40A @ 300V
-67 to 131°F (-55 to 55°C)
-67 to 212°F (-55 to 100°C)
Square
Panel
2.08 in
3.12 in
2.49 in
2.31 in
2.5 in
2.5 in
Yes
10.0VA, 4.0W
70 ohm
12V DC
DC
12V DC
50-1289-P
50-1289-P
50-1289-P
50-1289-P
40A @ 300VAC/28VDC
1 NO
DPST-NO
DPST-NO
Silver Alloy
15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V
40 A @ 28V
Silver alloy contacts
China
Open cover
40 A
40A @ 28V
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
2.25H, 2.50W, 2.43D
>= 0.1 Uc AC/DC
Screw Terminal
Screw
Screw
100000 cycles resistive DC load
100,000
Open
Riveted Construction
50/60 Hz
2 hp
2 hp
2
2
50/60 Hz
50/60
12V DC
Open Power Relay
131 Degrees F
600V DC
-67 Degrees F
1,000 mA
2 hp 120...600 V AC 50/60 Hz
Yes
Panel
Surface
Surface
6
6
2
15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 5 A at 480V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
1.95 in
2.25 in
1
6
4 W, 10 VA
10.0 W
10 VA AC
4 W DC
UL Listed; CSA; CE
Power relay
40 A at 300 V AC (on resistive load) conforming to UL; 40 A at 28 V DC (on resistive load) conforming to UL; 5 A at 480 V AC (on resistive load) conforming to UL; 5 A at 600 V AC (on resistive load) conforming to UL; 15 A at 120 V AC (tungsten filament) conforming to UL
6...600 V AC 50-60 Hz; 6...250 V DC
Surface
30 msec
Open
199 Power Series
Surface / Square / 6
CE Certified, CSA Certified, UL Listed
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
0.85...1.1 Un AC/DC
0.6
AWG 14
