Home / Open Power Relay, Surface Mounted, SPST-NO, 120V AC, 4 Pins, 1 Poles

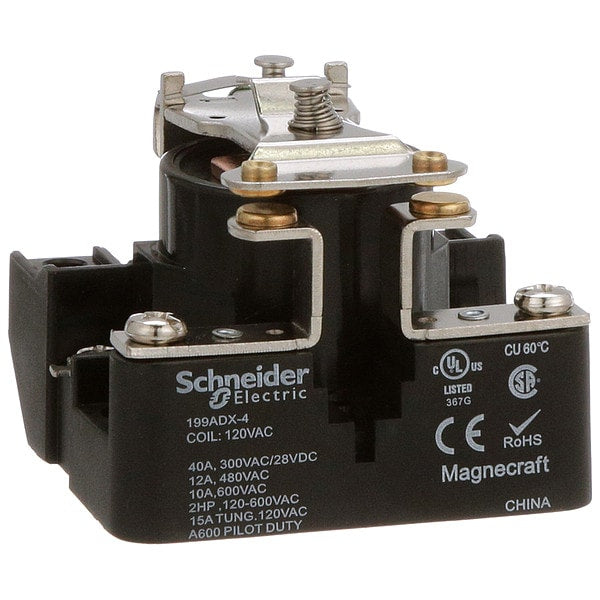

Open Power Relay, Surface Mounted, SPST-NO, 120V AC, 4 Pins, 1 Poles
Open Power Relay, Surface Mounted, SPST-NO, 120V AC, 4 Pins, 1 Poles

Open Power Relay, Surface Mounted, SPST-NO, 120V AC, 4 Pins, 1 Poles

  • Schneider Electric
  • Open Power Relay, Coil Voltage 120V AC, Contact Form SPST-NO, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 4, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, Contact Rating (DC) 10 A @ 600V, 12 A @ 480V, 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 2.5 in, Body Height 2.31 in, Body Width 3.12 in, Coil Resistance 290 ohm, Compatible with Grainger Part Number 6CVA2

    graingerSKU: 6CUT0, mscSKU: , zoro_no: G2148501, mongo_id: 65bbe85f22d7a989a98ee793

Web Price
$46.61 / each
Qty

Product Details

40A @ 300V
-67 to 131°F (-55 to 55°C)
-67 to 212°F (-55 to 100°C)
Panel
2.5 in
3.12 in
2.31 in
2.31 in
3.12 in
2.5 in
Yes
10.0VA, 4.0W
290 ohm
120V AC
AC
120V AC
6CVA2
50-1289-P
50-1289-P
50-1289-P
50-1289-P
40A @ 300VAC/28VDC
1 NO
SPST-NO
SPST-NO
Silver Alloy
Double action
15 A @ 120V, 40 A @ 300V
10 A @ 600V, 12 A @ 480V, 40 A @ 28V
Silver alloy contacts
China
Open cover
40 A
40A @ 28V
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
2.18H, 2.50W, 2.43D
>= 0.1 Uc AC/DC
Screw Terminal
Screw
Screw
50000 cycles resistive
50,000
Open
Riveted Construction
50/60 Hz
2 hp
2 hp
2
2
50/60 Hz
50/60
120V AC
Open Power Relay
131 Degrees F
600V AC
-67 Degrees F
1,000 mA
2 hp 120...600 V AC 50/60 Hz
Yes
Panel
Surface
Surface
4
4
1
10 A at 600V DC (Resistive Load), 12 A at 480V DC (Resistive Load), 15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load)
2.5 in
2.18 in
1
4
4 W, 10 VA
10.0 VA
10 VA AC
4 W DC
UL Listed; CSA; CE
Power relay
40 A at 300 V AC (on resistive load) conforming to UL; 40 A at 28 V DC (on resistive load) conforming to UL; 12 A at 480 V DC (on resistive load) conforming to UL; 10 A at 600 V DC (on resistive load) conforming to UL; 15 A at 120 V AC (tungsten filament) conforming to UL
6...600 V AC 50-60 Hz; 6...250 V DC
Surface
30 msec
Open
199 Power Series
Surface / 4
CE Certified, CSA Certified, UL Listed
SPST-NO-DM
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
0.85...1.1 Un AC/DC
0.6
AWG 14
