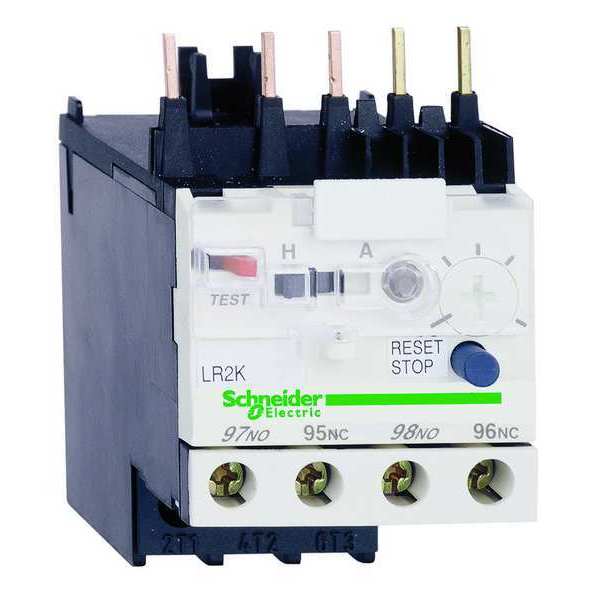

Overload Relay, 0.36 to 0.54A, Class 10, 3P

SKU
Brand Schneider Electric
Categories
Description Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 0.54 A, Minimum Overload Relay Current Setting 0.36 A, Trip Class 10A, Maximum Voltage Rating 250V DC (Signaling Circuit), 690V AC (Signaling Circuit), NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, TeSys K, Relay Style IEC, Overload Protection Type Thermal
graingerSKU: 6B185, mscSKU: , zoro_no: G0847375, mongo_id: 65bbe74b9a749db82272e8b0

Web Price

$89.36 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-55ÃÂ°C without derating IEC 60947 || -30-60ÃÂ°C with derating IEC 60947

Ambient Air Temperature For Storage -40-70ÃÂ°C

Associated Fuse Rating 6 A gG signalling circuit VDE 0660 || 6 A gG signalling circuit IEC 60947

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contact Form 1NO/1NC

Body Depth 2.56 in

Body Depth - Relay 2.56 in

Body Height 2.28 in

Body Height - Relay 2.28 in

Body Width 1.77 in

Body Width - Relay 1.77 in

Compatible with Series TeSys Deca, TeSys K

Connections - Terminals screw clamp terminals 1 1.5-4 mmÃÂ²solid || screw clamp terminals 2 1.5-4 mmÃÂ²solid || screw clamp terminals 1 0.75-4 mmÃÂ²flexible without cable end || screw clamp terminals 2 0.75-4 mmÃÂ²flexible without cable end || screw clamp terminals 1 0.34-2.5 mmÃÂ²flexible with cable end || screw clamp terminals 2 0.34-1.5 mmÃÂ²flexible with cable end

Control Type Red push-button trip test function || Blue push-button stop and manual reset || selector switch manual or automatic reset

Country of Origin (subject to change) Czechia

Current Range 0.36 to 0.54A

Depth 2.28

Device Short Name LR2K

Features Single Phase Sensitivity; Differential

Fire Resistance 850ÃÂ°C IEC 60695-2-1

Flame Retardance V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

For Use With TeSys K AC or DC IEC Contactor

Height 2.56

Includes Mounting Hardware Not Applicable

Ip Degree Of Protection IP2X conforming to IEC 60529

IP Rating IP22

Item - Relay IEC Style Overload Relay

Local Signalling trip indicator Yellow)

Maximum Operating Temperature 131 Degrees F

Maximum Overload Relay Current Setting 0.54 A

Maximum Voltage Rating 250V DC (Signaling Circuit), 690V AC (Signaling Circuit)

Mechanical Robustness shocks NO contact10 Gn for 11 ms IEC 60068-2-27 || shocks NC contact10 Gn for 11 ms IEC 60068-2-27 || vibrations NO contact2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations NC contact2 Gn, 5 to 300 Hz IEC 60068-2-6

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 0.36 A

Mounting Style Direct To Contactor

Mounting Support under contactor || plate, with specific accessories || rail, with specific accessories

NEMA Size Not Applicable

Network Frequency <= 400 Hz

Network Type AC || DC

Number of Poles 3

Operating Altitude 6561.68 ft (2000 m) without derating

Overall Height 2.28 in

Overall Height - Relay 2.28 in

Overload Protection Type Thermal

Overload Relay Current Range 0.36 to 0.54A

Package Quantity 1

Phase Failure Sensitivity yes IEC 60947-4-1

Power Dissipation Per Pole 2 W

Product Certifications UL || CSA || UKCA

Product Compatibility LP1K || LC7K || LP4K || LC1K

Product Name TeSys LRK

Product Or Component Type differential thermal overload relay

Protective Treatment TC IEC 60068 || TC DIN 50016

Range TeSys

Relay Application motor protection

Relay Style IEC

Reset Type Auto, Manual

Reset Type - Relay Auto, Manual

Sensing Method Bimetallic

Standards BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, VDE 0660

Starter Type IEC

Terminal Connection Type Screw Clamp Terminals

Thermal Overload Class class 10A IEC 60947-4-1

Thermal Protection Adjustment Range 0.36-0.54 A

Tightening Torque 1.3 N.m screw clamp terminals Philips No 2 || 1.3 N.m screw clamp terminals flat ÃÂ 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2

Trip Class 10A

Trip Class - Overload 10

Use With - Contactors and Starters LC7K, LP1K, LP4K Contactors, Mfr. Series LC1K

Width 1.77

[Ith] Conventional Free Air Thermal Current 6 A signalling circuit

[Ue] Rated Operational Voltage <= 690 V power circuit || 690 V AC AC-15 signalling circuit || 250 V DC DC-13 signalling circuit

[Uimp] Rated Impulse Withstand Voltage 6 kV

[Ui] Rated Insulation Voltage power circuit 690 V BS 4941 || power circuit 690 V IEC 60947 || power circuit 750 V VDE 0110 group C || power circuit 600 V CSA C22.2 No 14
