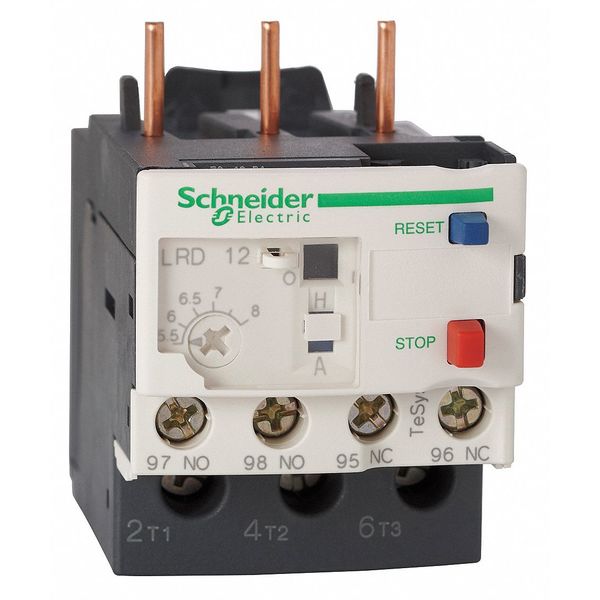

Overload Relay, 1.60 to 2.50A, 3P, Class 20

Overload Relay, 1.60 to 2.50A, 3P, Class 20

  • Schneider Electric
  • Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 2.5 A, Minimum Overload Relay Current Setting 1.6 A, Trip Class 20, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
Web Price
$117.31 / each
Qty

Product Details

-20-60°C without derating IEC 60947-4-1
-60-70°C
4 A gG signalling circuit || 4 A BS signalling circuit
1 NO + 1 NC
1NO/1NC
2.99 in
3 in
2.6 in
2.99 in
1.77 in
1.77 in
IACS E10
TeSys Deca
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end
Red push-button stop || Blue push-button reset
Thailand
1.60 to 2.50A
3.00
LR3D
1.89 kV 50 Hz IEC 60947-1
Non Differential
TeSys D 9-32A, TeSys N Size 00-1 Contactors
2.99
Not Applicable
IP20 conforming to IEC 60529
IP20
IEC Style Overload Relay
140 Degrees F
2.5 A
690V AC
shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations3 GN IEC 60068-2-6
-4 Degrees F
1.6 A
Direct To Contactor
plate, with specific accessories || rail, with specific accessories || under contactor
Not Applicable
0 to 400 Hz
DC || AC
3
2.6 in
2.99 in
Thermal
1.60 to 2.50A
1
3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
tripping current 130 % of Ir on two phase, the last one at 0
IEC || UL || CSA || EAC || ABS || ATEX INERIS || UKCA
LC1D18 || LC1D32 || LC1D25 || LC1D38 || LC1D09 || LC1D12
TeSys LRD || TeSys Deca
non differential thermal overload relay
TeSys
motor protection
IEC
Auto, Manual
Manual
Bimetallic
No
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
IEC
-20-60°C
Screw Clamp Terminals
class 20 IEC 60947-4-1
1.6-2.5 A
control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
20
20
1.14 +/- 0.06 Ir IEC 60947-4-1
Mfr. Series LC1D09 to LC1D32 Contactors
1.77
5 A signalling circuit
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
6 kV
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
