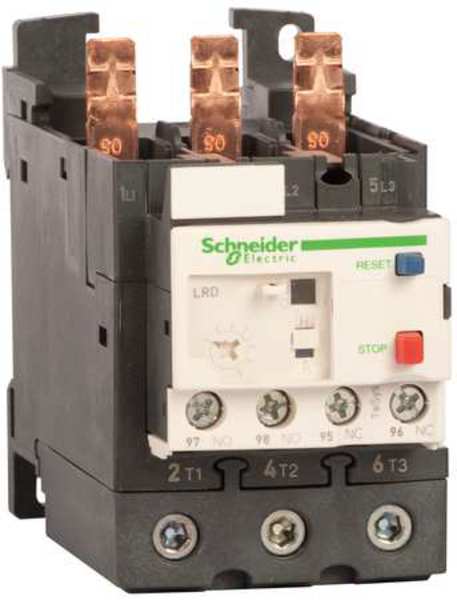

Overload Relay, 25 to 40A, Class 10, 3P

SKU
Brand Schneider Electric
Categories
Description Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 40 A, Minimum Overload Relay Current Setting 30 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
graingerSKU: 6KYD0, mscSKU: , zoro_no: G1776345, mongo_id: 65bbe7113aaddbd5a90717ea

Web Price

$148.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C without derating IEC 60947-4-1

Ambient Air Temperature For Storage -60-70ÃÂ°C

Associated Fuse Rating 4 A gG signalling circuit || 4 A BS signalling circuit

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contact Form 1NO/1NC

Body Depth 4.84 in

Body Depth - Relay 4.84 in

Body Height 2.76 in

Body Height - Relay 2.76 in

Body Width 2.17 in

Body Width - Relay 2.17 in

Climatic Withstand IACS E10

Compatible with Series TeSys Deca

Connections - Terminals control circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mmÃÂ² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mmÃÂ² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mmÃÂ² solid without cable end

Control Type Red push-button stop || Blue push-button reset

Country of Origin (subject to change) France

Current Range 25.0 to 40.0A

Depth 4.84

Device Short Name LR3D

Dielectric Strength 1.89 kV 50 Hz IEC 60947-1

Features Non Differential

Flame Retardance V1 conforming to UL 94

For Use With TeSys D LC1D40A thru LC1D65A Contactors

Height 2.76

Includes Mounting Hardware Not Applicable

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating IP20

Item - Relay IEC Style Overload Relay

Kit Required for Retrofit Mtg. No

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 40 A

Maximum Voltage Rating 690V AC

Mechanical Robustness shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 30 A

Mounting Style Direct To Contactor

Mounting Support plate, with specific accessories || rail, with specific accessories || under contactor

NEMA Size Not Applicable

Network Frequency 0 to 400 Hz

Network Type AC || DC

Number of Poles 3

Overall Height 2.76 in

Overall Height - Relay 2.76 in

Overload Protection Type Thermal

Overload Relay Current Range 30 to 40A

Package Quantity 1

Permissible Current 0.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit

Phase Failure Sensitivity tripping current 130 % of Ir on two phase, the last one at 0

Product Certifications IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || UKCA

Product Compatibility LC1D65A || LC1D40A || LC1D50A

Product Name TeSys LRD || TeSys Deca

Product Or Component Type non differential thermal overload relay

Range TeSys || TeSys Deca

Rated Insulation Voltage Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1

Relay Application motor protection

Relay Style IEC

Reset Type Auto, Manual

Reset Type - Relay Manual

Sensing Method Bimetallic

Separate Mounting Yes

Standards CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1

Starter Type IEC

Temperature Compensation -20-60ÃÂ°C

Terminal Connection Type Screw Clamp Terminals

Thermal Overload Class class 10A IEC 60947-4-1

Thermal Protection Adjustment Range 30-40 A

Tightening Torque control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors

Trip Class 10A

Trip Class - Overload 10

Tripping Threshold 1.14 +/- 0.06 Ir IEC 60947-4-1

Use With - Contactors and Starters Mfr. Series LC1D40A to LC1D65A Contactors

Width 2.17

[Ith] Conventional Free Air Thermal Current 5 A signalling circuit
