Home / OverloadRelay, IEC, Thermal, Auto/Manual
OverloadRelay, IEC, Thermal, Auto/Manual

OverloadRelay, IEC, Thermal, Auto/Manual

  • Schneider Electric

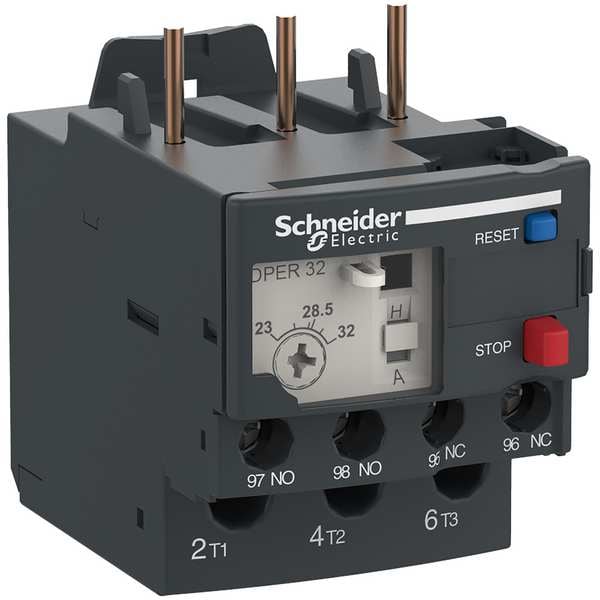

  • IEC Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 32 A, Minimum Overload Relay Current Setting 23 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Separately Mounted, Terminal Connection Type Screw Clamp Terminals, Compatible with Series Easy TeSys, Relay Style IEC, Overload Protection Type Thermal, Phase Three

    graingerSKU: 787P48, mscSKU: , zoro_no: G603481203, mongo_id: 65bbe8c222d7a989a9913709

Web Price
$49.99 / each
Qty

Product Details

-20-60°C without derating IEC 60947-4-1
-60-70°C
1 NO + 1 NC
1NO/1NC
2.76 in
2.76 in
2.6 in
2.6 in
1.77 in
1.77 in
Easy TeSys
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 2.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1.5-6 mm² flexible with cable end || power circuit screw clamp terminals 1 2.5-10 mm² solid without cable end
Red push-button stop || Blue push-button reset
France
70 mm
DPER
1.89 kV 50 Hz IEC 60947-1
400 Hz Power Circuit IEC 60947-4-1, 5 A Signalling Circuit, 690 V AC
Class 10, Easy TeSys DPER
66 mm
IP20 conforming to IEC 60529
IP20
IEC Style Overload Relay
LAD9R1
140 Degrees F
32 A
690V AC
-4 Degrees F
23 A
Separately Mounted
separate, with specific accessories || under contactor
Not Applicable
0 to 400 Hz
DC || AC
3
2.6 in
2.6 in
Thermal
23 to 32 A
1
1.5 A 240 V AC-15 signalling circuit || 0.1 A 250 V DC-13 signalling circuit
Three
tripping current 130 % of Ir on two phase, the last one at 0
cUL
contactor DPE09-38
Easy TeSys DPER
thermal overload relay
BS fuse 5 A - control circuit || GB2 circuit breaker 5 A - control circuit || gG fuse 5 A - control circuit
TH IEC 60068
Easy TeSys
overload protection
IEC
Auto, Manual
Manual
Thermal
Yes, Additional Items Needed
15 gn 11 ms IEC 60068-2-7
cUL, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
6 kV IEC 60801-5
-20-60°C
Screw Clamp Terminals
class 10 IEC 60947-4-1
23-32 A
control circuit 1.7 N.m screw clamp terminals || power circuit 2.5 N.m screw clamp terminals
10
10
1.14 +/- 0.06 Ir IEC 60947-4-1
Contactor DPE09-38
6 gn on plate IEC 60068-2-6
45 mm
5 A signalling circuit
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
6 kV
power circuit 600 V cUL || power circuit 690 V IEC 60947-4-1

Viewed together
