Home / Ovrload Modul, 3 to 12A, Class 10, 3P, 24VAC

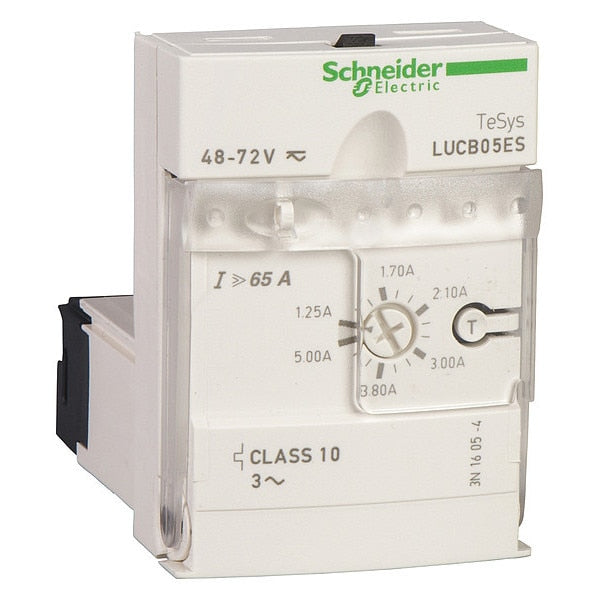

Ovrload Modul, 3 to 12A, Class 10, 3P, 24VAC

SKU
Brand Schneider Electric
Categories
Description Overload Module, Maximum Rated Motor Current Adjustment 12 A, Minumum Rated Motor Current Adjustment 3 A, Coil Voltage 24V AC, Compatible with Series TeSys Ultra, Terminal Connection Type Wire Leads, Trip Class 10, Phase Three, Maximum Voltage Rating 690V AC, Reset Type Manual, Standards ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed, Compatible with Grainger Part Number 5AB63, 5AB64, 5AB65, 5AB67
graingerSKU: 5AB75, mscSKU: , zoro_no: G1010703, mongo_id: 65bbe7a09a749db82274b1e6

Web Price

$232.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-85ÃÂ°C

Coil Voltage 24V AC

Compatibility Code LUCB

Compatible Manufacturer Part Number LU2B12B, LU2B32B, LUB12, LUB120, LUB32, LUB320, LUB38, LUB380

Compatible with Manufacturer Model Number LU2B12B, LU2B32B, LUB12, LUB120, LUB32, LUB320, LUB38, LUB380

Compatible with Series TeSys Ultra

Control Circuit Voltage Limits 20 to 26.5 V AC 24 V in operation || 14.5 V AC 24 V drop-out

Country of Origin (subject to change) France

Current Range 3.00 to 12.0A

Depth 60 mm

Device Application motor control || motor protection

Device Short Name LUCB

Features Earth Fault Protection

Fire Resistance 960ÃÂ°C parts supporting live components IEC 60695-2-12 || 650ÃÂ°C IEC 60695-2-12

Fixing Mode plug-in front face)

For Use With LUxB32, LUxS12, LUxS32 Power Bases, Mfr. Series LUxB12

Function Available manual reset || protection against phase failure and phase imbalance || protection against overload and short-circuit || earth fault protection

Heat Dissipation 2-2 W control circuit with LUB12 || 3-3 W control circuit with LUB32 || 3-3 W control circuit with LUB38

Height 66 mm

Immunity To Microbreaks 3 ms

Immunity To Radioelectric Fields 10 V IEC 61000-4-6

Immunity To Voltage Dips 70 % / 500 ms IEC 61000-4-11

Ip Degree Of Protection IP20 front panel and wired terminals IEC 60947-1 || IP20 other faces IEC 60947-1 || IP40 front panel outside connection zone IEC 60947-1

Load Type 3-phase motor self-cooled

Maximum Operating Temperature 158 Degrees F

Maximum Rated Motor Current Adjustment 12 A

Maximum Voltage Rating 690V AC

Minimum Operating Temperature -13 Degrees F

Minumum Rated Motor Current Adjustment 3 A

Motor Power Kw 5.5 kW 400 to 440 V AC 50/60 Hz || 5.5 kW 500 V AC 50/60 Hz || 9 kW 690 V AC 50/60 Hz

Network Frequency 40 to 60 Hz

Non-Dissipating Shock Wave 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2

Number of Poles 3

Operating Altitude 6561.68 ft (2000 m)

Operating Time 35 ms opening with LUB12 control circuit || 35 ms opening with LUB32 control circuit || 35 ms opening with LUB38 control circuit || 70 ms closing with LUB12 control circuit || 70 ms closing with LUB32 control circuit || 70 ms closing with LUB38 control circuit

Package Quantity 1

Phase Three

Phase Failure Sensitivity yes

Product Certifications CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine

Product Compatibility power base LUB12 || power base LUB32 || power base LUB38 || power base LUB120 || power base LUB320 || power base LUB380 || reversing contactor breaker LU2B12B || reversing contactor breaker LU2B32B

Product Name TeSys Ultra

Product Or Component Type advanced control unit

Product Specific Application basic protection and advanced functions, communication

Protective Treatment TH IEC 60068

Range TeSys

Reset manual reset

Reset Type Manual

Reset Type - Relay Manual

Resistance To Electrostatic Discharge 8 kV 3 in open air IEC 61000-4-2 || 8 kV 4 on contact IEC 61000-4-2

Resistance To Fast Transients 2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4

Resistance To Radiated Fields 10 V/m 3 IEC 61000-4-3

Safe Separation Of Circuit 400 V SELV between the control and auxiliary circuits IEC 60947-1 || 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1

Sensing Method Electronic

Shock Resistance 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27

Standards ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed

Terminal Connection Type Wire Leads

Thermal Overload Class class 10 40-60 Hz -25-70ÃÂ°C IEC 60947-6-2 || class 10 40-60 Hz -25-70ÃÂ°C UL 508

Thermal Protection Adjustment Range 3-12 A

Thermal Setting Range (A) 3.00 to 12.00

Trip Class 10

Trip Class - Overload 10

Tripping Threshold 14.2 x Ir +/- 20 %

Typical Current Consumption 140 mA 24 V AC I maximum while closing with LUB12 || 220 mA 24 V AC I maximum while closing with LUB32 || 220 mA 24 V AC I maximum while closing with LUB38 || 70 mA 24 V AC I rms sealed with LUB12 || 90 mA 24 V AC I rms sealed with LUB32 || 90 mA 24 V AC I rms sealed with LUB38

Utilisation Category AC-44 || AC-43 || AC-41

Vibration Resistance 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6

Voltage 24V AC

Width 45 mm

[Uc] Control Circuit Voltage 24 V AC

[Ue] Rated Operational Voltage 690 V AC

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-6-2

[Ui] Rated Insulation Voltage 690 V IEC 60947-6-2 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
