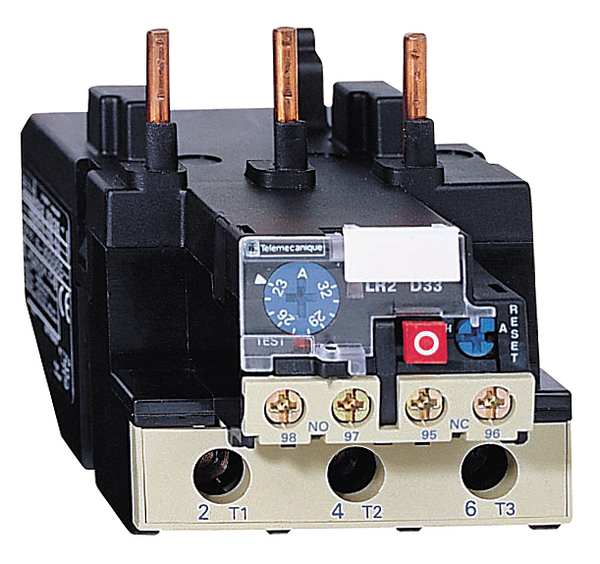

Home / Ovrload Relay, 30 to 40A, 3P, Class 20,690V
Ovrload Relay, 30 to 40A, 3P, Class 20,690V

Ovrload Relay, 30 to 40A, 3P, Class 20,690V

  • Schneider Electric
  • Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 40 A, Minimum Overload Relay Current Setting 30 A, Trip Class 20, Maximum Voltage Rating 1000V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal

    graingerSKU: 4NLT6, mscSKU: , zoro_no: G1924535, mongo_id: 65bbea6b22d7a989a99b157c

Web Price
$173.74 / each
Qty

Product Details

-20-60°C without derating IEC 60947-4-1
-60-70°C
4 A gG signalling circuit || 4 A BS signalling circuit
1 NO + 1 NC
1NO/1NC
4.76 in
4.76 in
3.94 in
3.93 in
2.95 in
2.95 in
IACS E10
TeSys Deca
power circuit screw clamp terminals 1 4-35 mm² flexible without cable end || power circuit screw clamp terminals 1 4-35 mm² flexible with cable end || power circuit screw clamp terminals 1 4-35 mm² solid without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end
Red push-button stop || Blue push-button reset
France
30.0 to 40.0A
4.76
LR2D
2.2 kV 50 Hz IEC 60947-1
Single Phase Sensitivity; Differential
V1 conforming to UL 94
LC1D40 thru LC1D80 IEC Contactors, 40 to 80A
3.93
Not Applicable
IP20 conforming to IEC 60529
IP20
IEC Style Overload Relay
2UWY4
140 Degrees F
40 A
1000V AC
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
-4 Degrees F
30 A
Direct To Contactor
plate, with specific accessories || rail, with specific accessories || under contactor
Not Applicable
0 to 400 Hz
DC || AC
3
3.94 in
3.93 in
Thermal
30 to 40A
1
0.72 A 500 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
tripping current 130 % of Ir on two phase, the last one at 0
IEC || UL || CSA || EAC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
LC1D95 || LC1D80
TeSys LRD || TeSys Deca
differential thermal overload relay
TeSys
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
motor protection
IEC
Auto, Manual
Manual
Bimetallic
Yes, Additional Items Needed
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
IEC
-20-60°C
Screw Clamp Terminals
class 20 IEC 60947-4-1
30-40 A
control circuit 1.7 N.m screw clamp terminals || power circuit 9 N.m screw clamp terminals
20
20
1.14 +/- 0.06 Ir IEC 60947-4-1
Mfr. Series LC1D40 to LC1D80 Contactors
2.95
5 A signalling circuit
1000 V AC 0 to 400 Hz power circuit IEC 60947-4-1
6 kV
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
