Home / Ovrload Relay, 37 to 50A, Class 20, 3P, 600V

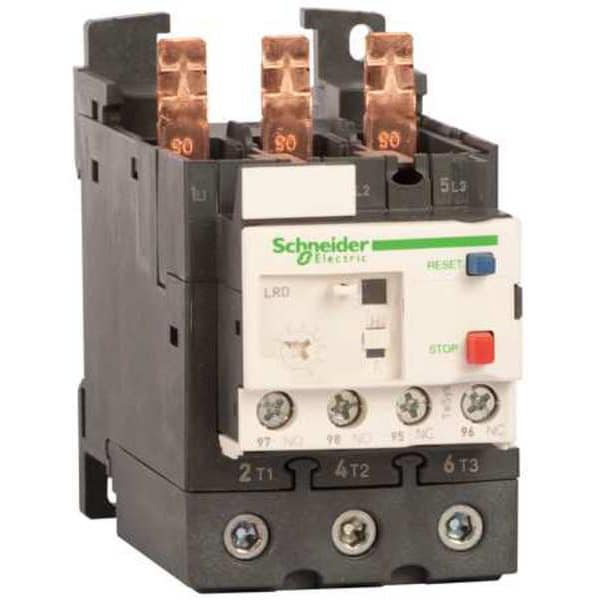

Ovrload Relay, 37 to 50A, Class 20, 3P, 600V

Ovrload Relay, 37 to 50A, Class 20, 3P, 600V

  • Schneider Electric
  • Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 50 A, Minimum Overload Relay Current Setting 37 A, Trip Class 20, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal

    graingerSKU: 6KYC3, mscSKU: , zoro_no: G1550035, mongo_id: 65bbe89c22d7a989a990524e

Web Price
$173.74 / each
Qty

Product Details

-20-60°C without derating IEC 60947-4-1
-60-70°C
4 A gG signalling circuit || 4 A BS signalling circuit
1 NO + 1 NC
1NO/1NC
4.84 in
4.84 in
2.76 in
2.76 in
2.17 in
2.17 in
IACS E10
TeSys Deca
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end
Red push-button stop || Blue push-button reset
France
37.0 to 50.0A
4.84
LRD
1.89 kV 50 Hz IEC 60947-1
Single Phase Sensitivity; Differential
V1 conforming to UL 94
TeSys D LC1D40A thru LC1D65A Contactors, Direct Mounting to LC1 with Ever Link Terminations D40A-D65A
2.76
Not Applicable
IP20 conforming to IEC 60529
IP20
IEC Style Overload Relay
No
140 Degrees F
50 A
690V AC
shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6
-4 Degrees F
37 A
Direct To Contactor
plate, with specific accessories || rail, with specific accessories || under contactor
Not Applicable
0 to 400 Hz
AC || DC
3
2.76 in
2.76 in
Thermal
37 to 50A
1
3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
tripping current 130 % of Ir on two phase, the last one at 0
IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || UKCA
LC1D50A || LC1D65A || LC1D40A
TeSys LRD || TeSys Deca
differential thermal overload relay
TeSys || TeSys Deca
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
motor protection
IEC
Auto, Manual
Manual
Bimetallic
Yes
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
IEC
-20-60°C
Screw Clamp Terminals
class 20 IEC 60947-4-1
37-50 A
control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors
20
20
1.14 +/- 0.06 Ir IEC 60947-4-1
Mfr. Series LC1D40A to LC1D65A Contactors
2.17
5 A signalling circuit
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
6 kV
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
