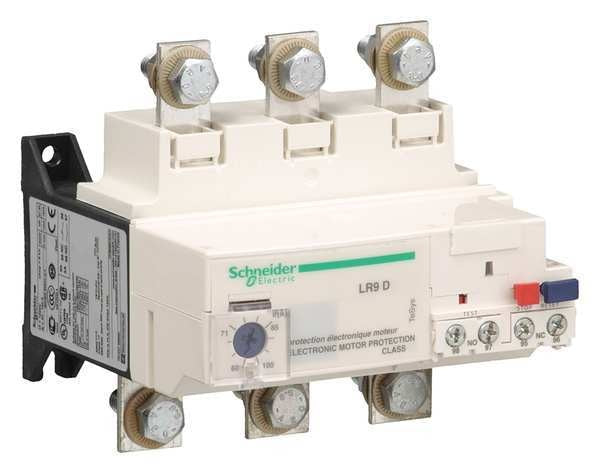

Ovrload Rely, 90 to 150A, Class 10, 3P, 690V

SKU
Brand Schneider Electric
Categories
Description Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 150 A, Minimum Overload Relay Current Setting 90 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
graingerSKU: null, mscSKU: null, zoro_no: G0524395, mongo_id: 65bbe5dd3aaddbd5a9ff06ea

Web Price

$548.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C without derating IEC 60947-4-1

Ambient Air Temperature For Storage -60-70ÃÂ°C

Associated Fuse Rating 4 A gG signalling circuit || 4 A BS signalling circuit

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contact Form 1NO/1NC

Body Depth 4.92 in

Body Depth - Relay 5.19 in

Body Height 4.65 in

Body Height - Relay 3.98 in

Body Width 4.53 in

Body Width - Relay 4.72 in

Climatic Withstand IACS E10

Compatible with Series TeSys Deca

Connections - Terminals power circuit bars || control circuit screw clamp terminals 1 0.5-1.5 mmÃÂ² flexible without cable end || control circuit screw clamp terminals 2 0.5-1.5 mmÃÂ² flexible without cable end || alarm circuit screw clamp terminals 1 0.5-1.5 mmÃÂ² flexible without cable end

Control Type Red push-button stop || Blue push-button reset

Country of Origin (subject to change) France

Current Range 90.0 to 150A

Depth 5.19

Device Short Name LR9D

Dielectric Strength 1.89 kV 50 Hz IEC 60947-1

Features Differential

For Use With LC1D115 thru LC1D150 IEC Contactors, 115 to 150A

Height 3.98

Includes Mounting Hardware Not Applicable

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating IP20

Item - Relay IEC Style Overload Relay

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 150 A

Maximum Voltage Drop <2.5 V closed state

Maximum Voltage Rating 690V AC

Mechanical Robustness vibrations2 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks13 Gn for 11 ms IEC 60068-2-7

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 90 A

Mounting Style Direct To Contactor

Mounting Support under contactor || rail

NEMA Size Not Applicable

Network Frequency 50-60 Hz

Network Type AC

Number of Poles 3

Operating Altitude <= 6561.68 ft (2000 m) without derating

Overall Height 4.65 in

Overall Height - Relay 3.98 in

Overload Protection Type Thermal

Overload Relay Current Range 90 to 150A

Package Quantity 1

Phase Failure Sensitivity tripping in 4 s +/- 20 % IEC 60947-4-1

Product Certifications UL || CSA || CCC || UKCA

Product Compatibility NSX circuit breaker || LC1D150 || LC1D115

Product Name TeSys LRD || TeSys Deca

Product Or Component Type electronic thermal overload relay

Range TeSys

Rated Insulation Voltage Power circuit 1000 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL

Relay Application motor protection

Relay Style IEC

Reset Type Auto, Manual

Reset Type - Relay Manual

Sensing Method Thermal

Signalling Function alarm

Standards CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1

Starter Type IEC

Supply Voltage Limits 17-32 V

Switching Capacity In Ma 0 to 150 mA

Temperature Compensation -20-60ÃÂ°C

Terminal Connection Type Screw Clamp Terminals

Thermal Overload Class class 10 IEC 60947-4-1

Thermal Protection Adjustment Range 90-150 A

Tightening Torque alarm circuit 0.45 N.m screw clamp terminals || power circuit 18 N.m bars M8 || control circuit 1.2 N.m screw clamp terminals

Trip Class 10

Trip Class - Overload 10

Tripping Threshold 1.05 +/- 0.06 In alarm IEC 60947-4-1 || 1.12 +/- 0.06 In de-energisation IEC 60947-4-1

Use With - Contactors and Starters Mfr. Series LC1D115 to LC1D150 Contactors
