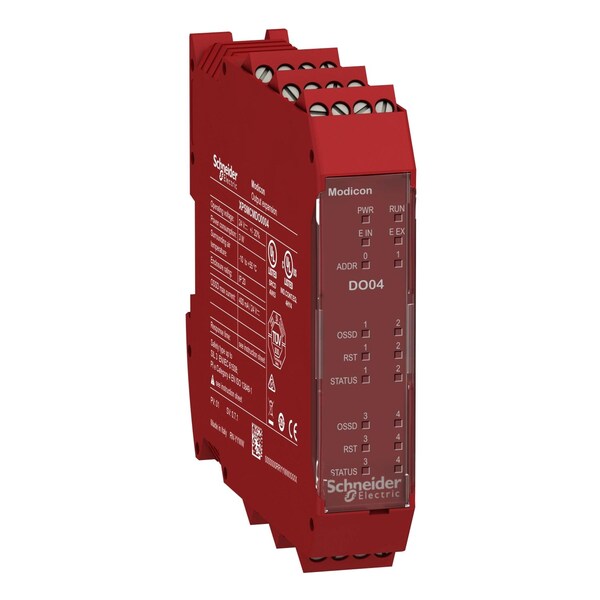

Pairs Output Modules Expansion Digital 4

SKU
Brand Schneider Electric
Categories
Description Pairs Output Modules Expansion Digital 4
graingerSKU: , mscSKU: , zoro_no: G600422919, mongo_id: 65bbe6c53aaddbd5a9051582

Web Price

$628.33 / each

Qty

Product Details

Ambient Air Temperature For Operation -10-55ÃÂ°C

Ambient Air Temperature For Storage -20-85ÃÂ°C

Cable Cross Section 0.2-1.5 mmÃÂ² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mmÃÂ² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mmÃÂ² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mmÃÂ² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mmÃÂ² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mmÃÂ² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mmÃÂ² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mmÃÂ² - AWG 24...AWG 14 solid without cable end

Connections - Terminals 2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block

Country of Origin (subject to change) Italy

Depth 22.5 mm

Device Short Name XPSMCM

Discrete Input Type isolated

Discrete Input Voltage 24 V DC

Discrete Output Current 400 mA || 100 mA

Discrete Output Type PNP

Discrete Output Voltage 24 V DC

Electrical Connection screw terminal

Electromagnetic Compatibility electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3

Function Of Module monitoring safety actuators discrete output

Height 99 mm

Insulation 250 V AC between power supply and housing EN/IEC 61800-5-1

Integrated Connection Type backplane expansion bus

Ip Degree Of Protection IP20 enclosure)

Load Type resistive load

Local Signalling 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 4 LEDs green/red OUT output status || 4 LEDs yellow RST restart signal || 4 LEDs yellow STATUS output status

Mounting Support omega 35 mm DIN rail EN 50022

Number Of Inputs 4 digital external device monitoring

Number Of Outputs 4 safety outputs OSSD contactor/drive connection || 4 configurable diagnostic connection

Number Of Terminal Blocks 6

Output Load 60 Ohm

Overvoltage Category II

Package Quantity 1

Pollution Degree 2

Power Consumption In W 3 W

Power Dissipation In W 3 W

Product Certifications TUV || RCM || cULus

Product Or Component Type safe output expansion module
