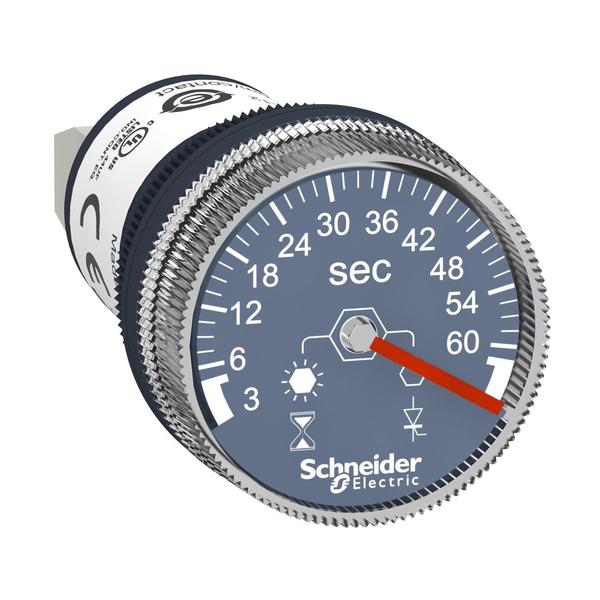

Panel mounted timer monofunction, plasti

SKU
Brand Schneider Electric
Categories
Description Panel mounted timer monofunction,plasti

Web Price

$63.31 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -20-80ÃÂ°C

Bezel Material plastic

Connections - Terminals screw terminals 1 x 4 mmÃÂ² EN/IEC 60947-1 || screw terminals 1 x 2.5 mmÃÂ² EN/IEC 60947-1

Country of Origin (subject to change) France

Device Presentation monolithic product

Diameter 29 mm

Dielectric Strength 1500 V EN/IEC 61812-1

Disturbance Radiated/Conducted class B EN 50022

Electromagnetic Compatibility electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2 || electromagnetic emission class B conforming to IEC 55011

Fixing Collar Material plastic

Height 62 mm

Immunity To Radioelectric Fields 10 V level 3 EN/IEC 61000-4-6

Ip Degree Of Protection front IP65 IEC 60529 || back IP20 IEC 60529

Local Signalling LED green, steady timing in progress || LED, off no timing in progress and output relay energised

Maximum Residual Current 5 mA

Maximum Voltage Drop 5 V

Minimum Switching Current 10 mA

Mounting Diameter 22 mm

Output Short-Circuit Protection no

Output Type thyristor

Overvoltage Category class 3 IEC 60536 || class 3 IEC 60664-1

Package Quantity 1

Pollution Degree 3 IEC 60664-1

Power Consumption In Va 1.5 VA

Power Consumption In W 1 W

Product Certifications CE || UL Listed

Product Or Component Type timer

Protection Type overvoltage protection

Repeat Accuracy +/- 0.5 %

Reset Time 30 ms after time delay on de-energisation || 60 ms during time delay on de-energisation

Resistance To Electromagnetic Fields 10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3 || 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3 || 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3

Resistance To Fast Transients 2 kV level 3 IEC 61000-4-4

Setting Accuracy Of Time Delay +/- 10 % of full scale 25ÃÂ°C EN/IEC 61812-1

Shape Of Signaling Unit Head round

Shock Resistance +/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27

Standards EN/IEC 61812-1 || UL 508

Supply Voltage Limits 93.5-253 V AC/DC

Surge Withstand 2 kV, level 3 IEC 61000-4-5

Temperature Drift +/- 0.05 %/ÃÂ°C

Temporary Permissible Current 10 A 0.01 s

Thickness 1-6 mm

Tightening Torque 0.5 N.m

Time Delay Range 3...60 s
