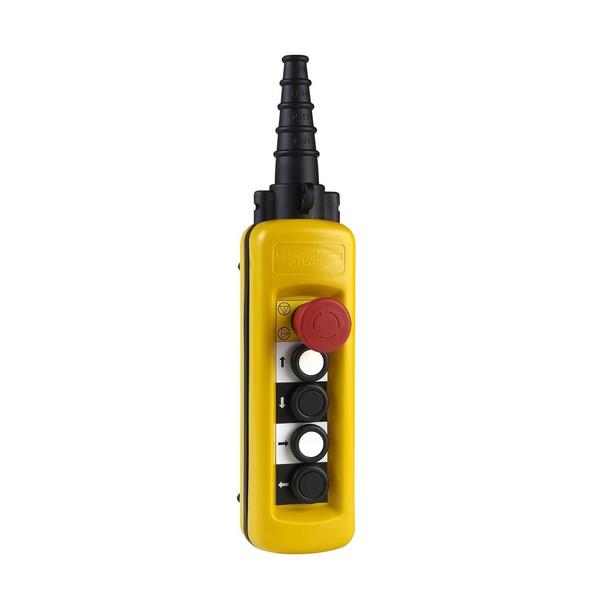

Pendant control station XAC-A-4 pushbu

SKU
Brand Schneider Electric
Categories
Description Pendant control station XAC-A - 4 pushbu
graingerSKU: , mscSKU: , zoro_no: G3303709, mongo_id: 65bbe6803aaddbd5a9034ab9

Web Price

$808.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cable Entry rubber sleeve with stepped entry 8-26 mm

Connections - Terminals screw clamp terminals, 1 x 0.5 to 1 x 2.5 mmÃÂ² without cable end || screw clamp terminals, 1 x 0.5 to 2 x 1.5 mmÃÂ² with cable end

Contact Code Designation A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Contact Operation slow-break

Control Button Type first push-button 1 NC + 1 NO raise, slow || second push-button 1 NC + 1 NO lower, slow || third push-button 1 NC + 1 NO left, slow || fourth push-button 1 NC + 1 NO right, slow || emergency stop push-button ÃÂ 40 mm 1 NC trigger action blank

Control Station Application control of single speed hoist motor

Control Station Colour yellow

Control Station Composition 4 push-buttons + 1 emergency stop

Control Station Type double insulated

Country of Origin (subject to change) United States

Device Short Name XACA

Electrical Circuit Type control circuit

Enclosure Material polypropylene

Enclosure Type complete ready for use

Ik Degree Of Protection IK08 EN 50102

Ip Degree Of Protection IP65 conforming to IEC 60529

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 1000000 cycles

Mechanical Interlocking with mechanical interlocking between pairs

Operating Force 13-13 N push-button || 14-14 N emergency stop

Overvoltage Category class II IEC 61140

Package Quantity 1

Product Certifications CCC || GOST

Product Compatibility ZB2BE102 + ZB2BE101 for each direction || ZB2BE102 + ZB2BE101 for emergency stop || ZB2BE102 || ZB2BE102 + ZB2BE101

Product Or Component Type pendant control station

Protective Treatment TH

Rated Operational Power In W 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Shock Resistance 100 gn IEC 60068-2-27

Short-Circuit Protection 10 A fuse protection cartridge gG

Standards UL 508 || EN/ISO 13850: 2006 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60204-32 || CSA C22.2 No 14

Terminal Identifier (13-14)NO || (11-12)NC

Terminals Description Iso NÃÂ°1 (11-12)NC || (13-14)NO

Terminals Description Iso NÃÂ°2 (31-32)NC || (11-12)NC || (21-22)NC

Vibration Resistance 15 gn 10-500 Hz)IEC 60068-2-6

[Ithe] Conventional Enclosed Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage emergency stop contact 400 V 3)IEC 60947-1 || 600 V 3)
