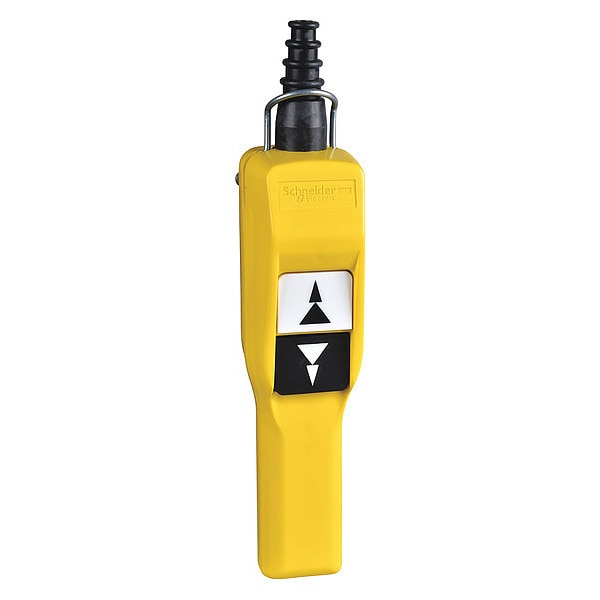

Pendant Station 600Vac 10A Xac +Options

SKU
Brand Schneider Electric
Categories
Description Pendant Station 600Vac 10A Xac +Options, Legend Up/Down, Contact Form 2NO, Mechanical Interlock Yes, NEMA Rating 4X, Housing Color Yellow, Hub 9/32 in to 19/32 in, Action Momentary, Number of Operators 2, Type of Operator Push Button, Number of Speeds 2, IP Rating 65, Height 11.46 in, Width 2.6 in, Depth 4.02 in, Housing Material Polypropylene, Standards CSA, EN/IEC, UL
graingerSKU: 48U275, mscSKU: 69535920, zoro_no: G0562418, mongo_id: 65bbee31526e052139af5e93

Web Price

$213.74 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cable Entry rubber sleeve with stepped entry 7-15 mm

Connections - Terminals screw clamp terminals, 1 x 2.5 mmÃÂ² with or without cable end || screw clamp terminals, 2 x 1.5 mmÃÂ² with or without cable end

Contact Code Designation A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Contact Form 2NO

Contact Operation staggered || slow-break

Control Button Type first push-button 2 NO (2 step) raise, slow-fast || second push-button 2 NO (2 step) lower, slow-fast

Control Station Application control of 2-speed hoist motor

Control Station Colour yellow

Control Station Composition 2 push-buttons

Control Station Type double insulated

Control Type intuitive

Conventional Enclosed Thermal Current 10 A

Country of Origin (subject to change) France

Depth 4.02 in

Device Short Name XACA pistol grip

Electrical Circuit Type control circuit

Enclosure Material polypropylene

Enclosure Type complete ready for use

Height 11.46 in

Housing Color Yellow

Housing Material Polypropylene

Hub 9/32 in to 19/32 in

Ik Degree Of Protection IK08 EN 50102

Ip Degree Of Protection IP65 conforming to IEC 60529

IP Rating 65

Legend Up/Down

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 1000000 cycles

Mechanical Interlock Yes

Mechanical Interlocking with mechanical interlocking

NEMA Rating 4X

Number of Operators 2

Number of Speeds 2

Operating Force 13-15 N

Overvoltage Category class II IEC 61140

Package Quantity 1

Product Certifications CSA || UL

Product Compatibility ZB2BE101 + ZB2BE201 for each direction

Product Or Component Type pendant control station

Protective Treatment TH

Rated Operational Power In W 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Shock Resistance 100 gn IEC 60068-2-27

Short-Circuit Protection 10 A fuse protection cartridge gG

Standards CSA, EN/IEC, UL

Terminal Identifier AI1, AI2

Terminals Description Iso NÃÂ°1 (3-4)NO

Type of Operator Push Button

Vibration Resistance 15 gn 10-500 Hz)IEC 60068-2-6

Width 2.6 in

[Ithe] Conventional Enclosed Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
