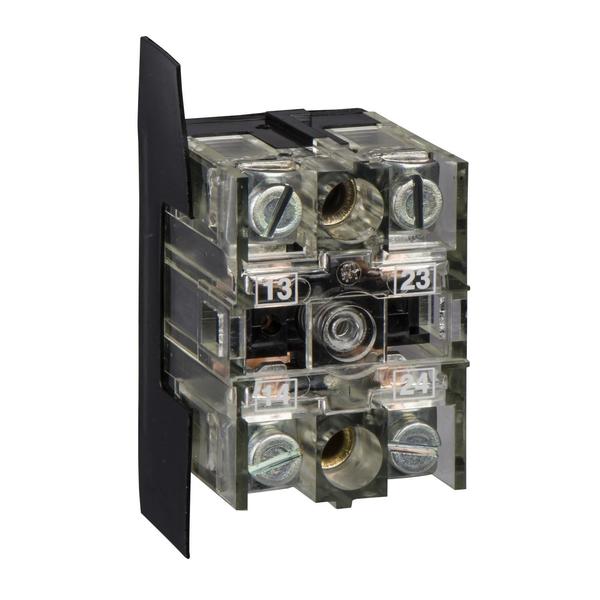

Pendant Station Contact 240Vac 3A Xac

SKU
Brand Schneider Electric
Categories
Description Pendant Station Contact 240Vac 3A Xac
graingerSKU: , mscSKU: , zoro_no: G0857930, mongo_id: 65bbe65b3aaddbd5a9023f6b

Web Price

$58.11 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Component Name XENB

Connections - Terminals screw clamp terminals, 1 x 2.5 mmÃÂ² with or without cable end || screw clamp terminals, 2 x 1.5 mmÃÂ² with or without cable end

Contact Block Application 2-speed

Contact Block Type single

Contact Code Designation A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A

Contact Operation slow-break || staggered

Contacts Type And Composition 1 C/O + 1 NO

Conventional Enclosed Thermal Current 10 A

Country of Origin (subject to change) Czechia

Electrical Circuit Type control circuit

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 1000000 cycles

Mechanical Interlocking without mechanical interlock

Mounting Of Block front mounting

Package Quantity 1

Product Compatibility XACB || XACM

Product Or Component Type contact block

Rated Operational Power In Va 140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 210 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 640 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive || 680 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive

Rated Operational Power In W 31 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 35 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Shock Resistance 100 gn IEC 60068-2-27

Short-Circuit Protection 10 A fuse protection cartridge gG

Standards IEC 60947-5-1 || CSA C22.2 No 14 || EN 60947-5-1

Terminal Identifier (11-12)NC || (13-14)NO

Terminals Description ISO nÃÂ°1 (13-14-31-32)OF || (23-24)NO_CL

Type Of Operator spring return

Vibration Resistance 15 gn 10-500 Hz)IEC 60068-2-6

[Ithe] Conventional Enclosed Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage 400 V 3)IEC 60947-1
