Home / Pendant Station Contact 240Vac 3A Xe

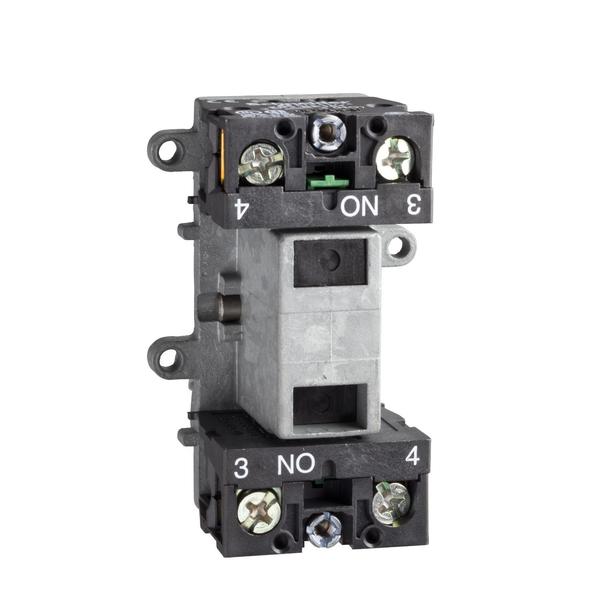

Pendant Station Contact 240Vac 3A Xe

SKU
Brand Schneider Electric
Categories
Description Pendant Station Contact 240Vac 3A Xe

Web Price

$54.31 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Component Name XENG

Connections - Terminals screw clamp terminals, 1 x 0.5 to 1 x 2.5 mmÃÂ² without cable end || screw clamp terminals, 1 x 0.5 to 2 x 1.5 mmÃÂ² with cable end

Contact Block Application single speed

Contact Block Type double

Contact Code Designation A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Contact Operation slow-break

Contacts Type And Composition 2 NO

Country of Origin (subject to change) France

Electrical Circuit Type control circuit

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 1000000 cycles

Mounting Of Block front mounting

Operating Force 15 N

Overvoltage Category class II IEC 61140

Package Quantity 1

Product Compatibility XACA

Product Or Component Type contact block

Rated Operational Power In W 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Shock Resistance 100 gn IEC 60068-2-27

Short-Circuit Protection 10 A fuse protection cartridge gG

Standards UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1

Terminals Description Iso NÃÂ°1 (13-14)NO || B

Terminals Description Iso NÃÂ°2 (13-14)NO || B

Type Of Operator latching

Vibration Resistance 15 gn 10-500 Hz)IEC 60068-2-6

[Ithe] Conventional Enclosed Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
