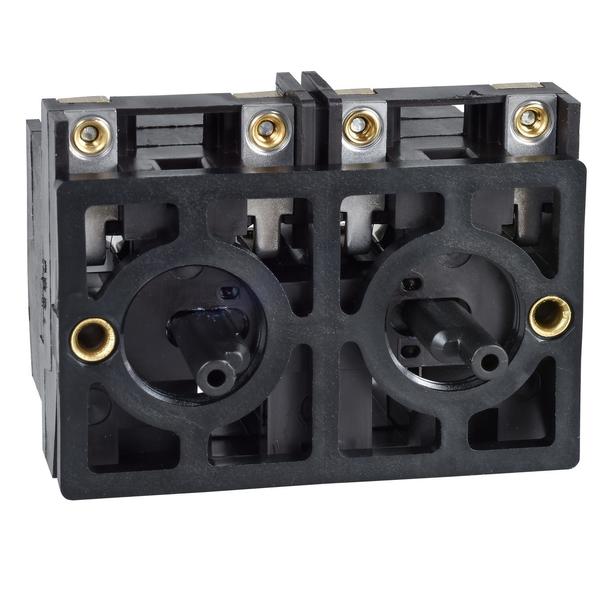

Pendant Station Contact 600Vac 10A Xe

SKU
Brand Schneider Electric
Categories
Description Pendant Station Contact 600Vac 10A Xe

Web Price

$151.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Component Name XESD

Connections - Terminals screw clamp terminals, 1 x 2.5 mmÃÂ² with or without cable end || screw clamp terminals, 2 x 1.5 mmÃÂ² with or without cable end

Contact Block Application single speed

Contact Block Type double

Contact Code Designation A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A

Contact Operation snap action

Country of Origin (subject to change) Czechia

Electrical Circuit Type control circuit

Electrical Shock Protection Class class II IEC 61140

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 1000000 cycles

Mechanical Interlocking with mechanical interlocking

Mounting Of Block front mounting

Operating Force 15 N || 25 N

Package Quantity 1

Product Compatibility XACB || XACM

Product Or Component Type contact block

Rated Operational Power In Va 100 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 450 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive || 50 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 750 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive

Rated Operational Power In W 140 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C || 140 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 95 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C

Shock Resistance 100 gn IEC 60068-2-27

Short-Circuit Protection 10 A fuse protection cartridge gG

Standards CSA C22.2 No 14 || EN 60947-5-1 || IEC 60947-5-1

Terminal Identifier (13-14)NO || (11-12)NC

Terminals Description Iso NÃÂ°1 B || (13-14-11-12)OF

Terminals Description Iso NÃÂ°2 B || (23-24-21-22)OF

Type Of Operator 2 spring return

Vibration Resistance 15 gn 10-500 Hz)IEC 60068-2-6

[Ithe] Conventional Enclosed Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage 500 V 3)IEC 60947-1
