Home / Pendant Station Contact Blockxacs414

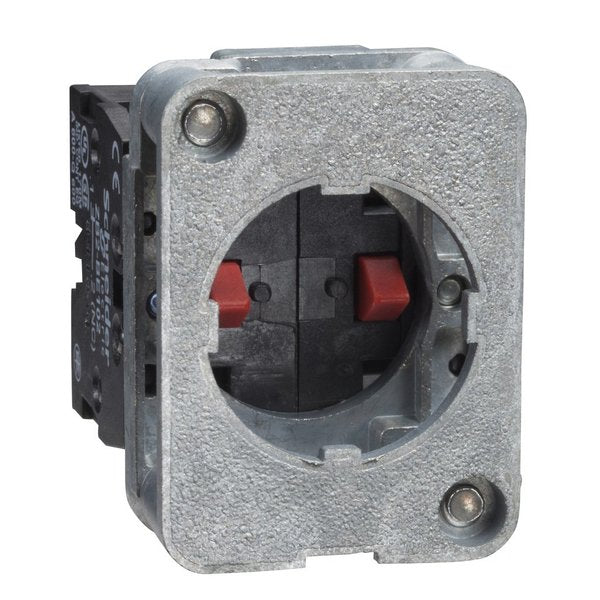

Pendant Station Contact Blockxacs414

SKU
Brand Schneider Electric
Categories
Description Pendant Station Contact Blockxacs414
graingerSKU: 48P771, mscSKU: , zoro_no: G0853861, mongo_id: 65bbe76a9a749db822736f61

Web Price

$31.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Component Name XACS

Connections - Terminals screw clamp terminals, 1 x 2.5 mmÃÂ² with or without cable end || screw clamp terminals, 2 x 1.5 mmÃÂ² with or without cable end

Contact Block Type single

Contact Code Designation A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A

Contact Operation slow-break

Contacts Type And Composition 2 NC

Conventional Enclosed Thermal Current 10 A

Country of Origin (subject to change) Czechia

Electrical Circuit Type control circuit

Horizontal Fixing Centres 40 mm

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 1000000 cycles

Mechanical Interlocking without mechanical interlock

Mounting Of Block front mounting

Package Quantity 1

Product Compatibility ZA2B to head || XACA

Product Or Component Type contact block

Rated Operational Power In Va 140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 385 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 455 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive || 525 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive

Rated Operational Power In W 42 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 45 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 60 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Shock Resistance 100 gn IEC 60068-2-27

Short-Circuit Protection 10 A fuse protection cartridge gG

Standards CSA C22.2 No 14 || IEC 60947-5-1 || EN 60947-5-1

Terminal Identifier (13-14)NO || (11-12)NC

Terminals Description ISO nÃÂ°1 (21-22)NC || (11-12)NC

Type Of Operator spring return

Vertical Fixing Centres 30 mm

Vibration Resistance 15 gn 10-500 Hz)IEC 60068-2-6

[Ithe] Conventional Enclosed Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage 500 V 3)IEC 60947-1
