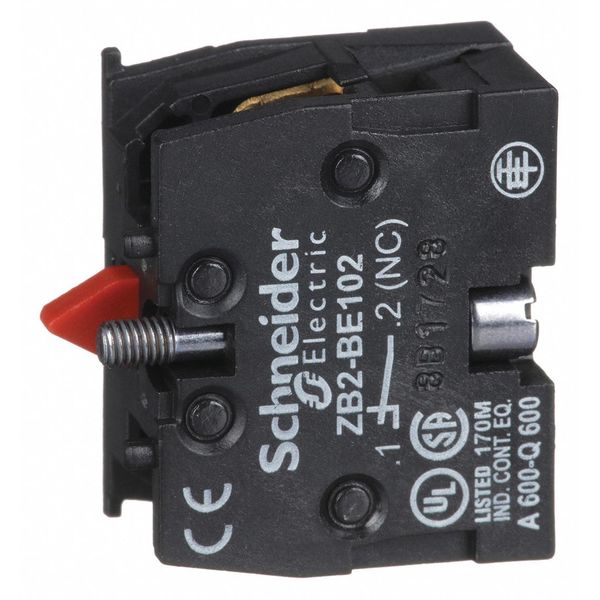

Pendent Contact Block, 1NC SlowBreak, 22mm

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1NC, Contact Rating 10A @ 600V AC, For Use With Schneider XACA, XAPS2, XB4, XB5 Head, Action Momentary, 22 mm, Application Pendent Station, NEMA Contact Rating Designation A600/Q150DN, Color Black, Terminal Connection Screw/Clamp, Standards CE, CSA, IEC, UL
graingerSKU: 4B699, mscSKU: 80883747, zoro_no: G1441081, mongo_id: 65bbe80f9a749db82277037d

Web Price

$19.61 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -13 to 158ÃÂ°F (-25 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Application Pendent Station

Color Black

Component Name ZB2

Connections - Terminals Screw clamps terminals, 1 x 2.5 mmÃÂ² with or without cable end; Screw clamps terminals, 2 x 1.5 mmÃÂ² with or without cable end

Contact Block Application Single speed

Contact Block Type Single

Contact Code Designation A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A

Contact Form 1NC

Contact Operation Slow-break

Contact Rating 10A @ 600V AC

Contact Type and Composition 1 NC

Conventional Enclosed Thermal Current 10 A

Country of Origin (subject to change) Mexico

Electrical Circuit Type Control circuit

Electrical Shock Protection Class Class II IEC 61140

For Use With Schneider XACA, XAPS2, XB4, XB5 Head

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 1000000 cycles

Mounting front mounting

NEMA Contact Rating Designation A600/Q150DN

Operating Force 13 to 15 N

Package Quantity 1

Product Compatibility XACA; XB4; XB5

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Power in W 40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1; 48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1; 65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1

Short-Circuit Protection 10 A fuse protection cartridge gG (gl)

Size 22 mm

Standards CE, CSA, IEC, UL

Terminal Connection Screw/Clamp

Terminals Description ISO nÃÂ°1 (11-12)NC

Type Of Operator spring return

Vibration Resistance 15 gn 10 to 500 Hz)IEC 60068-2-6

Voltage 600 V
