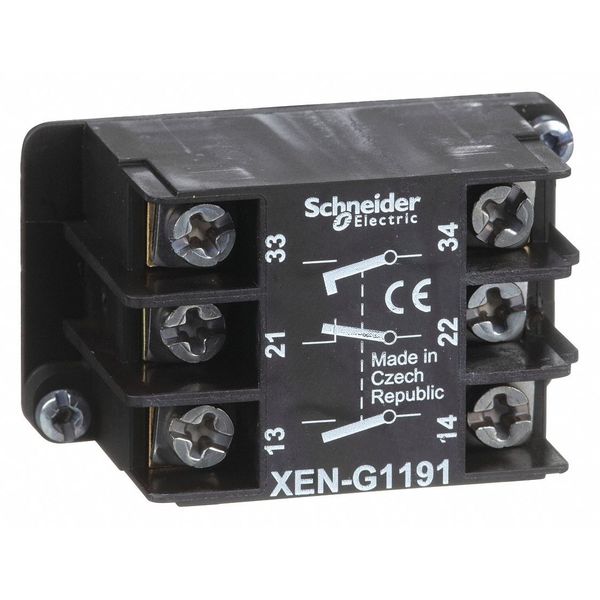

Pendent Contact Block, 1NC+2NO EarlyClose

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1NC/2NO, Contact Rating 10A @ 600V AC/DC, For Use With Schneider XACA, XACA9 Head, Action Momentary/Make Before Break, 22 mm, Application Pendent Station, NEMA Contact Rating Designation A600/Q600, Color Black, Terminal Connection Screw/Clamp, Standards CSA, UL
graingerSKU: 2EW17, mscSKU: 61509253, zoro_no: G1497377, mongo_id: 65bbe99422d7a989a9963a6f

Web Price

$45.81 / each

Qty

Product Details

Action Momentary/Make Before Break

Ambient Air Temperature For Operation -13 to 158ÃÂ°F (-25 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Application Pendent Station

Color Black

Component Name XENG

Connections - Terminals Screw clamp terminals, 1 x 0.5 to 1 x 2.5 mmÃÂ² without cable end; Screw clamp terminals, 1 x 0.5 to 2 x 1.5 mmÃÂ² with cable end

Contact Block Application 2-speed

Contact Block Type Single

Contact Code Designation A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Contact Form 1NC/2NO

Contact Operation Slow-break; Staggered

Contact Rating 10A @ 600V AC/DC

Contact Type and Composition 1 NC + 2 NO

Conventional Enclosed Thermal Current 10 A

Country of Origin (subject to change) Czechia

Electrical Circuit Type Control circuit

For Use With Schneider XACA, XACA9 Head

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 1000000 cycles

Mounting front mounting

NEMA Contact Rating Designation A600/Q600

Operating Force 18 N

Overvoltage Category Class II IEC 61140

Package Quantity 1

Product Compatibility XACA; XACA9 to head

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Power in W 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C; 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C; 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Shock Resistance 100 gn IEC 60068-2-27

Short-Circuit Protection 10 A fuse protection cartridge gG

Size 22 mm

Standards CSA, UL

Terminal Connection Screw/Clamp

Terminals Description ISO nÃÂ°1 (21-22)NC; (33-34)NO_CL; (13-14)NO

Type Of Operator spring return

Vibration Resistance 15 gn 10 to 500 Hz)IEC 60068-2-6

Voltage 600 V
