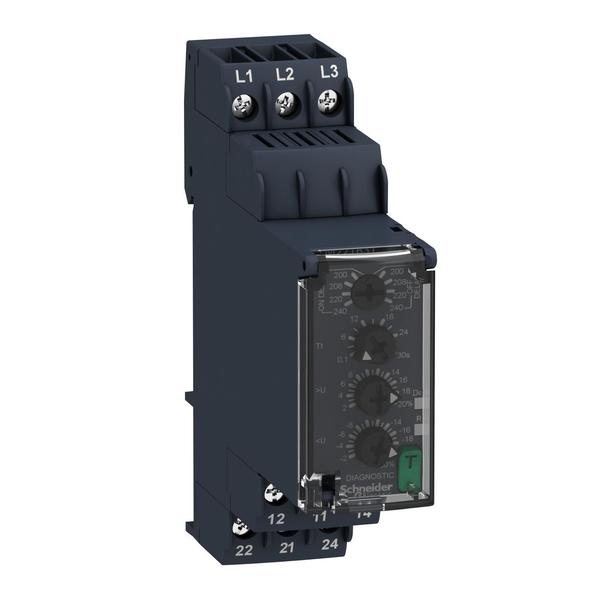

Phase Ctrl Relay, 200-240VAC In 8A, Dpdt

SKU
Brand Schneider Electric
Categories
Description Phase Ctrl Relay,200-240VAC In 8A,Dpdt

Web Price

$227.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C 60 Hz || -20-60ÃÂ°C 50 Hz AC/DC

Ambient Air Temperature For Storage -40-70ÃÂ°C

Connections - Terminals screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mmÃÂ² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 14) flexible with cable end

Contacts Material cadmium free

Contacts Type And Composition 2 C/O

Control Circuit Voltage Limits 20 % + 20 % Un

Country of Origin (subject to change) India

Dielectric Test Voltage 2.5 kV AC 50 Hz, 1 min IEC 60255-27

Electrical Durability 100000 cycles

Electromagnetic Compatibility immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22

Housing Material self-extinguishing plastic

Hysteresis 2-2 % fixed selectable

Immunity To Microbreaks 10 ms

Insulation Resistance > 100 MOhm 500 V DC IEC 60255-27

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)

Maximum Measuring Cycle 150 ms measurement cycle as true rms value

Maximum Switching Current 8 A AC

Maximum Switching Voltage 250 V AC

Measurement Error < 1 % over the whole range with voltage variation || < 0.05 %/ÃÂ°C with temperature variation

Measurement Range 200...240 V voltage AC

Mechanical Durability 10000000 cycles

Minimum Switching Current 10 mA 5 V DC

Mounting Position any position

Mounting Support 35 mm DIN rail conforming to EN/IEC 60715

Output Contacts 2 C/O

Overvoltage Category III IEC 60664-1 || III UL 508

Package Quantity 1

Phase 3 phase

Pollution Degree 3 IEC 60664-1 || 3 UL 508

Power Consumption In Va 10-10 VA 240 V AC 60 Hz

Product Certifications CSA || CCC || EAC || RCM || CE || GL || UL

Product Or Component Type 3-phase control relay

Relative Humidity 93-97 % 25-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters phase sequence || phase failure detection || overvoltage and undervoltage detection

Relay Name RM22TR

Relay Type control relay

Repeat Accuracy +/- 0.5 % input and measurement circuit || +/- 3 % time delay

Reset Time 1500 ms at maximum voltage

Response Time <= 300 ms

Run-Up Delay At Power-Up 650 ms

Setting Accuracy Of The Switching Threshold +/- 10 % of the full scale

Setting Accuracy Of Time Delay 0.916666666666667

Shock Resistance 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

Standards EN/IEC 60255-1

Status Led LED (Yellow) relay ON || LED (Green) power ON

Supply Frequency 50...60 Hz +/- 10 %

Supply Voltage Limits 160-288 V AC

Switching Capacity In Va 2000 VA

Switching Threshold Drift <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range

Threshold Adjustment Voltage 2...20 % of Un selected

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Drift <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range

Time Delay Type adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt

Utilisation Category AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1

Vibration Resistance 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Voltage Detection Threshold < 100 V AC

Voltage Range 200...240 V phase to phase

Width 22.5 mm

[Us] Rated Supply Voltage 200...240 V AC
