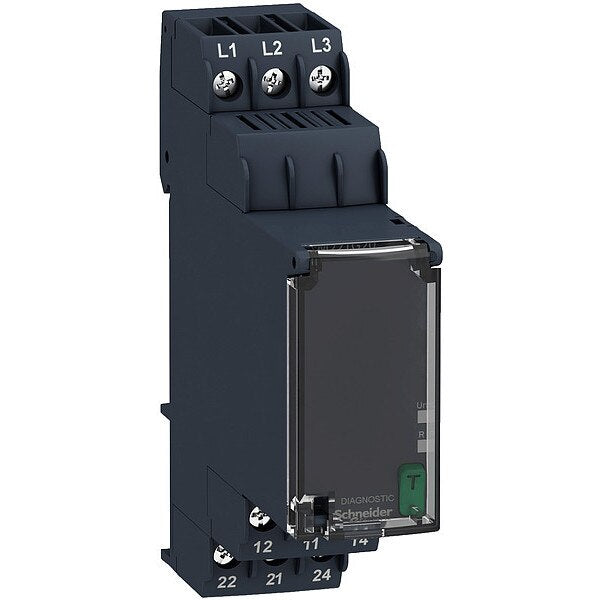

Phase Ctrl Relay, 208-480VAC In 8A, Dpdt

SKU
Brand Schneider Electric
Categories
Description Phase Control Relay, Base Shape Octal, Contact Form SPDT, Contact Rating (AC) 5 A @ 250V, Contact Rating (DC) 7 A @ 30V, Current Rating 8 A, Flat Pin Width Not Applicable, Input Voltage 183 to 528V AC, Monitored Parameters Phase Failure, Phase Sequence, Number of Pins 9, Restart Auto, Restart Time Delay 1.5 sec, IP Rating IP40, Mounting Style DIN Rail, Body Depth 3.13 in, Body Height 3.54 in, Body Width 0.89 in, Electrical Operating Durability 100,000, Frequency 50/60 Hz
graingerSKU: 69ZP31, mscSKU: , zoro_no: G7123923, mongo_id: 65bbe7649a749db82273482d

Web Price

$121.49 / each

Qty

Product Details

AC Contact Rating - Relay 5A @ 250V

Ambient Air Temperature For Operation -20-50ÃÂ°C 60 Hz || -20-60ÃÂ°C 50 Hz AC/DC

Ambient Air Temperature For Storage -40-70ÃÂ°C

Base Shape Octal

Base Type - Plug In Relay Octal

Body Depth 3.13 in

Body Depth - Relay 2.87 in

Body Height 3.54 in

Body Height - Relay 3.54 in

Body Width 0.89 in

Body Width - Relay 0.89 in

Connections - Terminals screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mmÃÂ² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 14) flexible with cable end

Contact Form SPDT

Contact Form - Relay SPDT

Contact Rating (AC) 5 A @ 250V

Contact Rating (DC) 7 A @ 30V

Contacts Material cadmium free

Contacts Type And Composition 2 C/O

Control Circuit Voltage Limits 183...528 V AC

Country of Origin (subject to change) Multiple

Current Rating 8 A

DC Contact Rating - Relay 7A @ 30V

Dielectric Test Voltage 2.5 kV AC 50 Hz, 1 min IEC 60255-27

Electrical Connection Type Screw

Electrical Durability 100000 cycles

Electrical Operating Durability 100,000

Electromagnetic Compatibility immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22

Flat Pin Width Not Applicable

Frequency 50/60 Hz

Housing Material Plastic

Immunity To Microbreaks 10 ms

Input or Control Voltage 183 to 528V AC

Input Voltage 183 to 528V AC

Insulation Resistance > 100 MOhm 500 V DC IEC 60255-27

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)

IP Rating IP40

Item - Relay Phase Monitor Relay

Maximum Operating Temperature 122 Degrees F

Maximum Switching Capacity 1,250 VA

Maximum Switching Current 8 A

Maximum Switching Voltage 250V AC

Measurement Range 183...528 V voltage AC

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 30,000,000

Minimum Operating Temperature -4 Degrees F

Minimum Switching Current 10 mA

Monitored Parameters Phase Failure, Phase Sequence

Mounting - Relay Plug In

Mounting Position any position

Mounting Style DIN Rail

Mounting Support 35 mm DIN rail conforming to EN/IEC 60715

Number of Pins 9

Output Contacts 2 C/O

Over Voltage No

Overall Depth 3.13 in

Overvoltage No

Overvoltage Category III IEC 60664-1 || III UL 508

Package Quantity 1

Phase 3 phase

Phase Loss Sensitivity No

Phase Reversal No

Phase Unbalance No

Pollution Degree 3 IEC 60664-1 || 3 UL 508

Power Consumption 1,250 VA

Power Consumption In Va 15-15 VA 480 V AC 60 Hz

Product Certifications CE || EAC || RCM || GL || CSA || UL || CCC

Product Or Component Type 3-phase control relay

Relative Humidity 93-97 % 25-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters phase sequence || phase failure detection (2 or more phase cut)

Relay Mounting Style DIN-Rail

Relay Name RM22TG

Relay Type control relay

Reset Time 1500 ms at maximum voltage

Response Time <= 200 ms

Restart Auto

Restart Time Delay 1.5 sec

Run-Up Delay At Power-Up 650 ms

Shock Resistance 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

Socket Code Configurator DIN-Rail / Octal / 9

Standards C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed

Status Led LED (Yellow) relay ON || LED (Green) power ON

Supply Frequency 50...60 Hz +/- 10 %

Supply Voltage Limits 183-528 V AC

Switching Capacity In Va 2000 VA

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type without

Under Voltage No

Utilisation Category AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1

Vibration Resistance 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Voltage Detection Threshold < 100 V AC

Weight 3.2 oz

Width 22.5 mm

[Us] Rated Supply Voltage 208...480 V AC
