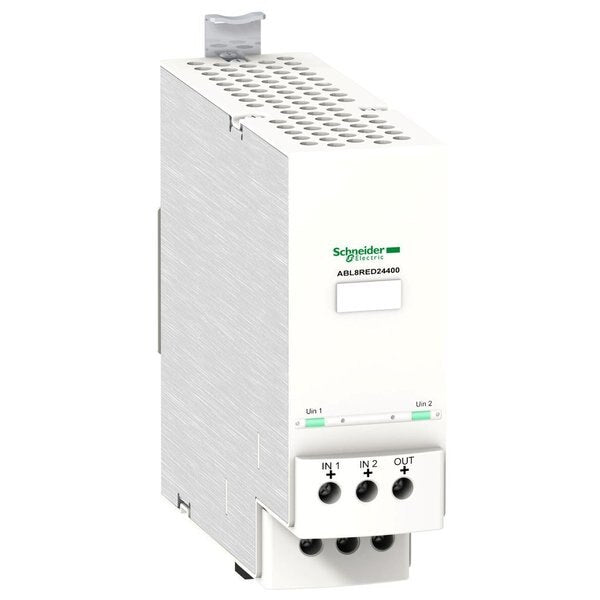

Phaseo Redundancy Module 40Amp

SKU
Brand Schneider Electric
Categories
Description Phaseo Redundancy Module 40Amp
graingerSKU: , mscSKU: , zoro_no: G0862797, mongo_id: 65bbe6103aaddbd5a9004ed4

Web Price

$332.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-60ÃÂ°C

Ambient Air Temperature For Storage -40-85ÃÂ°C

Connections - Terminals output connection screw type terminals 2 x 0.5 to 2 x 10 mmÃÂ² AWG 20 to AWG 8 || input connection screw type terminals 4 x 0.5 to 4 x 10 mmÃÂ² AWG 20 to AWG 8 || diagnostic relay removable screw terminal block 1 x 2.5 mmÃÂ² AWG 14

Country of Origin (subject to change) Multiple

Dielectric Strength 500 V between input and ground || 500 V between output and ground

Environmental Characteristic EMC EN 61000-6-3 || EMC EN/IEC 61000-6-2 || safety EN/IEC 60950-1 || safety EN/IEC 61204

Fixing Mode by clips 35 mm symmetrical DIN rail horizontal || by clips 35 mm symmetrical DIN rail vertical

Input Current 20 A

Input Voltage 24 to 28.8 V DC

Input Voltage Limits 22 to 30 V

Ip Degree Of Protection IP20 conforming to EN/IEC 60529

Local Signalling for power supply status 1 LED per input (green) || for power supply status 1 relay

Marking CE

Maximum Output Current 40 A

Mtbf Reliability 2488391 H at 24 V DC with UTE C80-810 calculation method

Name Of Test electrostatic discharges EN/IEC 61000-4-2 || emission EN 61000-6-3 || induced electromagnetic field EN/IEC 61000-4-6 level 3 || radiated electromagnetic field EN/IEC 61000-4-3 level 3 || rapid transient IEC 61000-4-4 level 3 || surge EN/IEC 61000-4-5 level 2 || conducted/radiated emissions EN 55022 Class B || emission EN 50081-1

Number Of Output Channels 1

Operating Altitude 6561.68 ft (2000 m)

Output Coupling parallel

Output Protection Type against overload external protection by power supply || against short-circuits external protection by power supply

Output Voltage (Uin-0.2) V DC

Overvoltage Category class II VDE 0106-1

Package Quantity 1

Product Certifications EAC || RCM

Product Or Component Type redundancy module

Relative Humidity 0-90 % during operation || 0-95 % during storage

Standards CSA C22.2 No 60950-1 || UL 508

Vibration Resistance 2 gn 11.9-150 Hz)EN/IEC 61131-2 || 3.5 mm 3-11.9 Hz)EN/IEC 61131-2
