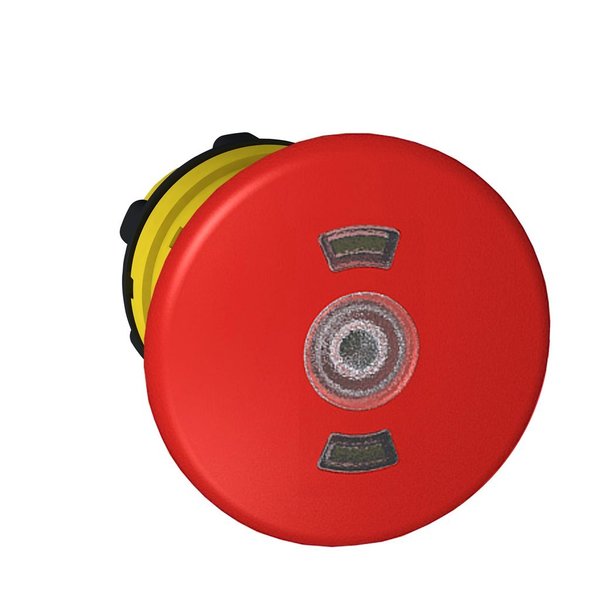

Plastic Push Pull E-Stop W/Status Indica

SKU
Brand Schneider Electric
Categories
Description Plastic Push Pull E-Stop W/Status Indica

Web Price

$108.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material dark grey plastic

Cad Overall Depth 59 mm

Cad Overall Height 40 mm

Cad Overall Width 40 mm

Compatibility Code ZB5

Country of Origin (subject to change) Czechia

Device Presentation basic element

Device Short Name ZB5

Electrical Composition Code M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED

Head Type standard

Ik Degree Of Protection IK05 IEC 50102

Ip Degree Of Protection IP54 IEC 60529

Mechanical Durability 500000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

Operator Profile red mushroom ÃÂ 40 mm, unmarked

Overvoltage Category class II IEC 60536

Package Quantity 1

Product Certifications CSA || BV || LROS (Lloyds register of shipping) || DNV || GL || UL Listed

Product Compatibility integral LED

Product Or Component Type head for illuminated emergency stop push-button

Protective Treatment TH

Reset push-pull

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards EN 81-1 || GB 14048.5 || UL 508 || EN/ISO 13850 || EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-1

Station Name XALD 1 cut-out || XALK 1 cut-out

Type Of Operator trigger action and mechanical latching with mechanical state indicator

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
