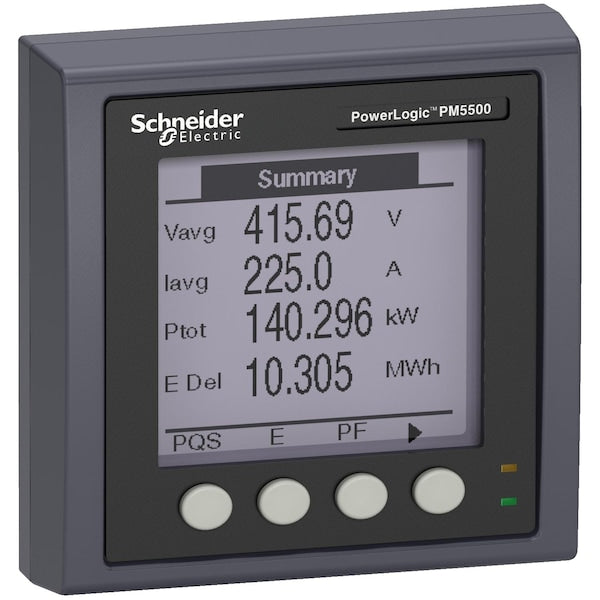

PM5563 Meter, 2 ethernet, up to 63th H,

SKU
Brand Schneider Electric
Categories
Description PM5563 Meter,2 ethernet,up to 63th H,
graingerSKU: , mscSKU: , zoro_no: G4607413, mongo_id: 65bbe86b22d7a989a98f3597

Web Price

$4,578.74 / each

Qty

Product Details

Amps 1 A || 5 A

Analogue Input Type voltage 5 MOhm) || current <= 0.3 mOhm)

Circularity Profile ENVEOLI1412028EN

Communication Gateway Ethernet/serial

Communication Port Protocol Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V || JBUS || Modbus TCP/IP 10/100 Mbit/s 2500 V || Ethernet Modbus TCP/IP daisy chain || BACnet IP || DNP3 over ethernet

Communication Port Support RS485 || ETHERNET

Connections - Terminals voltage circuit screw terminal block4 || control circuit screw terminal block2 || current transformer screw terminal block6 || RS485 link screw terminal block4 || digital input screw terminal block8 || digital output screw terminal block4 || Ethernet network RJ45 connector2

Country of Origin (subject to change) India

Data Recording time stamping || data logs || maintenance logs || event logs || alarm logs || min/max of instantaneous values

Depth 72 mm

Device Application gateway || power monitoring || WAGES metering || multi-tariff

Device Short Name PM5563

Display Resolution 128 x 128 pixels

Display Type remote LCD display

Electromagnetic Compatibility limits for harmonic current emissionsclass A IEC 61000-3-2 || conducted RF disturbanceslevel 3 IEC 61000-4-6 || magnetic field at power frequencylevel 4 IEC 61000-4-8 || conducted and radiated emissionsclass B EN 55022 || limitation of voltage changes, voltage fluctuations and flicker in low-voltage IEC 61000-3-3 || electrostatic discharge 8 kVlevel 4 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test IEC 61000-4-3 || electrical fast transient/burst immunity testlevel 4 IEC 61000-4-4 || surge immunity testlevel 4 IEC 61000-4-5 || voltage dips and interruptions immunity test IEC 61000-4-11

Ethernet Service SNTP client || SNMP-Traps

Frequency Measurement Range 45-65 Hz

Height 6.1

Information Displayed tariff 8)

Ip Degree Of Protection display IP54 IEC 60529 || rear IP30 IEC 60529

Length 6.8

Maximum Power Consumption In Va 16 VA 480 V

Measurement Accuracy apparent power +/- 0.5 % || frequency +/- 0.05 % || active energy +/- 0.2 % || reactive energy +/- 1 % || active power +/- 0.2 % || voltage +/- 0.1 % || power factor +/- 0.005 || current +/- 0.15 % || reactive power +/- 1 %

Measurement Current 50-10000 mA

Measurement Voltage 20-400 V AC 45...65 Hz between phase and neutral || 20-828 V AC 45...65 Hz between phases

Memory Capacity 1.1 MB

Metering Type measured neutral current || calculated ground current

Mounting Mode clip-on

Mounting Support DIN rail

Network Frequency 50 Hz || 60 Hz

Number Of Inputs 4 digital

Number Of Outputs 2 digital

Number Of Poles 1P + N || 3P || 3P + N

Operating Altitude <= 9842.52 ft (3000 m)

Package Quantity 1

Pollution Degree 2

Power Quality Analysis up to the 63rd harmonic

Primary/Ambient Air Temp. -25-70ÃÂ°C; -40-85ÃÂ°C

Range PowerLogic

Relative Humidity 5-95 % 50-50ÃÂ°C non-condensing

Ride-Through Time 35 ms 120 V AC typical || 129 ms 230 V AC typical || 50 ms 125 V DC typical

Sampling Rate 128 samples/cycle

Standards EN 50470-3 || EN 50470-1 || IEC 62053-22 || IEC 60529 || UL 61010-1 || IEC 62053-24 || IEC 61557-12 || ANSI C12.20; CE IEC 61010-1 || cULus UL 61010-1 || BTL; class 0.2S active energy IEC 62053-22

Type Of Measurement current || voltage || frequency || power factor || energy || active and reactive power

Web Services diagnostic via predefined web pages || real time viewing of data || web server || alarm notification by e-mail

Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Weight 450 g

Width 5

[Us] Rated Supply Voltage 100...300 V DC || 90...528 V AC 45...65 Hz
