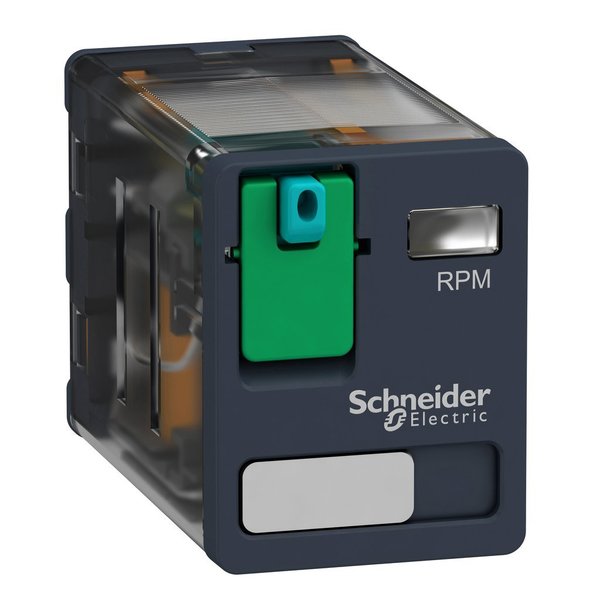

Home / Power plug-in relay, 15 A, 2 CO, 12 V DC, 12V DC Coil Volts, 2 C/O

Power plug-in relay, 15 A, 2 CO, 12 V DC, 12V DC Coil Volts, 2 C/O

SKU
Brand Schneider Electric
Categories
Description Power plug-in relay,15 A,2 CO,12 V DC
graingerSKU: , mscSKU: , zoro_no: G600905627, mongo_id: 65bbe5b23aaddbd5a9fde731

Web Price

$9.74 / each

Qty

Minimum order: 10

Product Details

AC Contact Rating - Relay 15A @ 250V AC

Coil Resistance 160 Ohm

Coil Volts 12V DC

Contact Form - Relay 2 C/O

Contact Material AgNi

Country of Origin (subject to change) China

Current Rating 15 A 277 V AC) UL; 15 A 28 V DC) UL; 15 A 250 V AC) NO IEC; 15 A 28 V DC) NO IEC; 7.5 A 250 V AC) NC IEC; 7.5 A 28 V DC) NC IEC

DC Contact Rating - Relay 15A @ 28V DC

Dielectric Strength 1500 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with reinforced; 2000 V AC between poles with basic

Features Lockable Test Button

Operating Temp. Range -40-55ÃÂ°C

Operating Time 20 ms at nominal voltage

Package Quantity 1

Pin Shape flat

Power Consumption - Relay 0.85 W

Protection Category RT I

Series RPM; Power

Standards UL 508; EN/IEC 61810-1 C22.2 No 14; EAC

Switching Power Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V

Switching Voltage 250 V IEC
