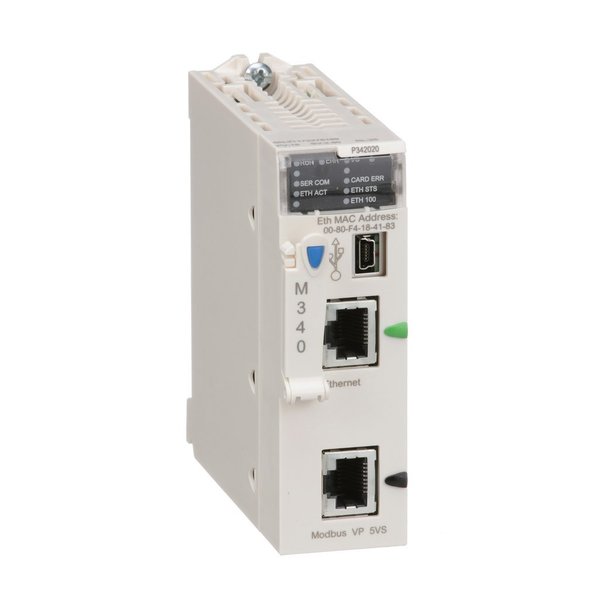

Processor module M340, max 1024 discrete

SKU
Brand Schneider Electric
Categories
Description Processor module M340,max 1024 discrete

Web Price

$2,522.49 / each

Qty

Product Details

Ambient Air Temperature For Operation 0-60 ÃÂ°C

Analogue I/O Processor Capacity 256 I/O multi-rack configuration || 66 I/O single-rack configuration

Application Structure 1 cyclic/periodic master task || 1 periodic fast task || no auxiliary task || 64 event tasks

Bus Length 0-10 m serial link non isolated character mode segment || 0-10 m serial link non isolated Modbus segment || 0-1000 m serial link isolated character mode segment || 0-1000 m serial link isolated Modbus segment || 0-15 m character mode point-to-point || 0-15 m Modbus point-to-point

Communication Module Processor Capacity 2 Ethernet communication module || 4 AS-Interface module

Communication Service bandwidth management, Ethernet TCP/IP || Data Editor, Ethernet TCP/IP || Modbus TCP messaging, Ethernet TCP/IP || Rack Viewer, Ethernet TCP/IP || SNMP network administrator, Ethernet TCP/IP

Concept Transparent Ready || CANopen

Control Channels programmable loops

Control Parameter one CRC on each frame (RTU) Modbus || one LRC on each frame (ASCII) character mode || one LRC on each frame (ASCII) Modbus

Country of Origin (subject to change) France

Current Consumption 95 mA 24 V DC

Default Size Of Object Areas 1024 %MWi internal words located internal data || 256 %KWi constant words located internal data || 512 %Mi located internal bits

Discrete I/O Processor Capacity 1024 I/O multi-rack configuration || 704 I/O single-rack configuration

Environmental Characteristic hazardous location class I division 2

Execution Time Per Instruction 0.12 ÃÂµs Boolean || 0.17 ÃÂµs double-length words || 0.25 ÃÂµs single-length words || 1.16 ÃÂµs floating points

Height 2.1

Integrated Connection Type non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3 to 19.2 kbit/s full duplex || non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3 to 19.2 kbit/s half duplex || non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3 to 19.2 kbit/s half duplex || non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3 to 19.2 kbit/s half duplex || USB port 12 Mbit/s || Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s

Ip Degree Of Protection IP20

Length 4.8

Marking CE

Maximum Size Of Object Areas 256 kB unlocated internal data || 32634 %Mi located internal bits

Maximum Tap Links Length <15 m serial link non isolated character mode segment || <15 m serial link non isolated Modbus segment || <40 m serial link isolated character mode segment || <40 m serial link isolated Modbus segment

Memory Description supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data || internal RAM 4096 kB || internal RAM 256 kB data || internal RAM 3584 kB program constants and symbols || supplied memory card (BMXRMS008MP) activation of standard web server, class B10

Monitoring diagnostic counters Modbus || event counters Modbus

Number Of Addresses 0-248 character mode || 0-248 Modbus

Number Of Application Specific Channel 36

Number Of Devices 2 point-to-point character mode || 2 point-to-point Modbus

Number Of Devices Per Segment 0-32 character mode) || 0-32 Modbus)

Number Of Instructions Per Ms 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic || 8.1 Kinst/ms 100 % Boolean

Number Of Racks 4

Number of slots 11

Package Quantity 1

Port Ethernet 10BASE-T/100BASE-TX

Product Certifications CE || UL || CSA || RCM || EAC || Merchant Navy

Product Or Component Type processor module

Protective Treatment TC

Relative Humidity 10-95 % without condensation

Requests 1 K data bytes per request character mode || 252 data bytes per RTU request Modbus || 504 data bytes per ASCII request Modbus

Standards EN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G

Status Led 1 LED (Green) activity on Ethernet network (ETH ACT) || 1 LED (Green) processor running (RUN) || 1 LED (Green) status of Ethernet network (ETH STS) || 1 LED (Red) data rate (ETH 100) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Red) memory card fault (CARD ERR) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Yellow) activity on Modbus (SER COM)

Supply internal power supply via rack

System Overhead 0.13 ms fast task || 0.7 ms master task

Width 4.6
