Name: Push Button, 16 mm, 1 CO, Green
Brand: Schneider Electric
SKU: G3463093
Price: 13.99 USD
Availability: InStock

Home / Push Button, 16 mm, 1 CO, Green

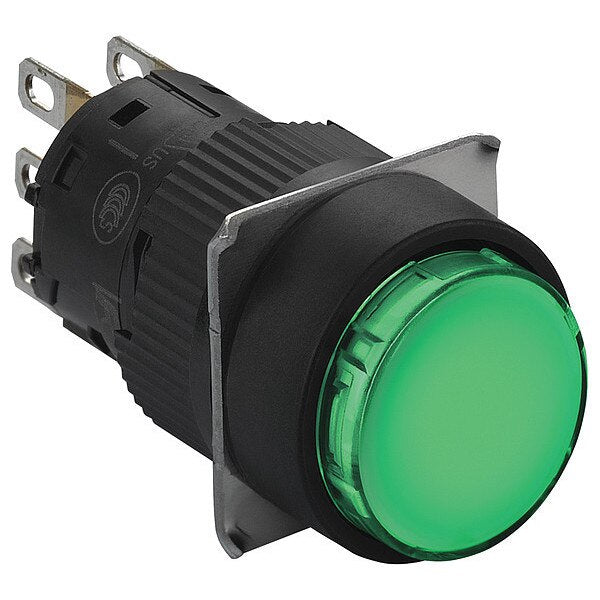

Push Button, 16 mm, 1 CO, Green

SKU
Brand Schneider Electric
Categories
Description Push Button, 16 mm, Momentary Action, Round Flush Button Type of Operator, Contact Form 1 CO, Bezel Plastic, Color Green, Contact Rating 0.15A @ 125V DC, 0.2A @ 125V DC, 0.7A @ 240V AC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC, IP Rating 65, Legend No Legend, Standards CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C 4520, JIS C 852, UL 508, Terminal Connection Quick Connect
graingerSKU: 55WU71, mscSKU: , zoro_no: G3463093, mongo_id: 65bbe83b9a749db82277ea47

Web Price

$13.99 / each

Qty

Minimum order: 50

Product Details

Action Momentary

Ambient Air Temperature For Operation -10-55ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Plastic

Bezel Material plastic

Color Green

Connections - Terminals insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mmÃÂ² AWG 19 || fast connector socket

Contact Form 1 CO

Contact Operation snap action

Contact Rating 0.15A @ 125V DC, 0.2A @ 125V DC, 0.7A @ 240V AC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC

Contact Resistance 50 mOhm 1/6 V

Contacts Material gold-flashed silver

Contacts Type And Composition 1 C/O

Country of Origin (subject to change) China

Device Short Name XB6E

Electrical Durability 100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C

Features China RoHS Regulation, Circularity Profile, Environmental Disclosure, EU RoHS Directive, Green Premium Product, Mercury Free, REACh Free of SVHC, REACh Regulation, RoHS Exemption Information, Toxic Heavy Metal Free

Ip Degree Of Protection IP65 IEC 60529

IP Rating 65

Legend No Legend

Marking CE

Material Plastic

Mechanical Durability 1000000 cycles

Mounting Diameter 16 mm

Operating Position any position

Operator Profile green flush

Overvoltage Category II IEC 60536

Package Quantity 1

Product Certifications CCC || cURus

Product Or Component Type monolithic push-button

Shape Of Signaling Unit Head round

Shock Resistance 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 2 A cartridge fuse gG

Size 16 mm

Standards CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C 4520, JIS C 852, UL 508

Terminal Connection Quick Connect

Tightening Torque 0.6-1 N.m

Type of Operator Round Flush Button

Vibration Resistance 1 mm 10-55 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 0.7 A 240 V, AC-13 EN/IEC 60947-5-1 || 1 A 120 V, AC-13 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IEC 60947-5-1 || 0.15 A 125 V, DC-13 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 3 A fast connector socket) || 5 A
