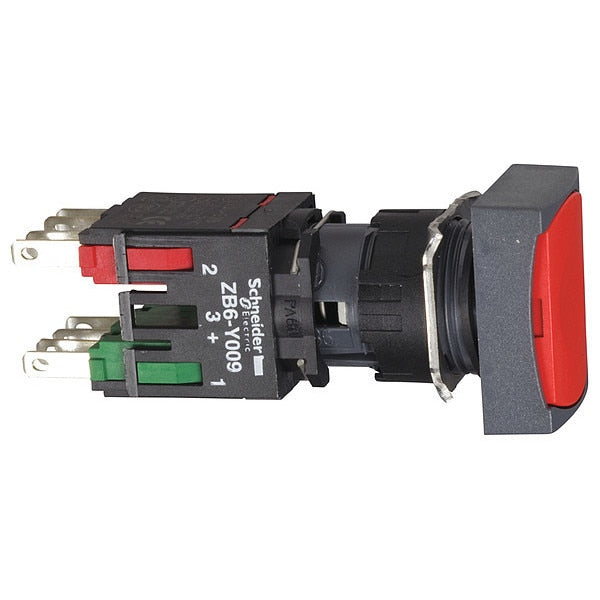

Push Button, 16 mm, 1 NO/1 NC, Red

SKU
Brand Schneider Electric
Categories
Description Push Button, 16 mm, Momentary Action, Rectangular Flush Button Type of Operator, Contact Form 1 NO/1 NC, Bezel Plastic, Color Red, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC, NEMA Rating 13, 4, 4X, IP Rating 65, Legend No Legend, Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C 4520, JIS C 852, UL 508, Terminal Connection Quick Connect

Web Price

$42.99 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Plastic

Bezel Material plastic

Cad Overall Depth 57 mm

Cad Overall Height 18 mm

Cad Overall Width 24 mm

Color Red

Connections - Terminals Faston connectors 2.8 x 0.5 mm

Contact Form 1 NO/1 NC

Contact Operation slow-break

Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Country of Origin (subject to change) Mexico

Device Short Name XB6

Electrical Durability 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Features China RoHS Regulation, Circularity Profile, Environmental Disclosure, EU RoHS Directive, Green Premium Product, Mercury Free, REACh Free of SVHC, REACh Regulation, RoHS Exemption Information, Toxic Heavy Metal Free

Ip Degree Of Protection IP65 IEC 60529

IP Rating 65

Legend No Legend

Material Plastic

Mechanical Durability 2000000 cycles

Mounting Diameter 16 mm

Nema Degree Of Protection NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

NEMA Rating 13, 4, 4X

Operating Force 3.5 N NO changing electrical state || 4.5 N NC changing electrical state

Operating Position any position

Operating Travel 1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)

Operator Profile red flush, unmarked

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications GOST || CCC || CSA || UL

Product Or Component Type complete push-button

Protective Treatment TC

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 6 A cartridge fuse gG

Size 16 mm

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C 4520, JIS C 852, UL 508

Terminal Connection Quick Connect

Terminals Description Iso NÃÂ°1 (13-14)NO || (21-22)NC

Type of Operator Rectangular Flush Button

Vibration Resistance +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
