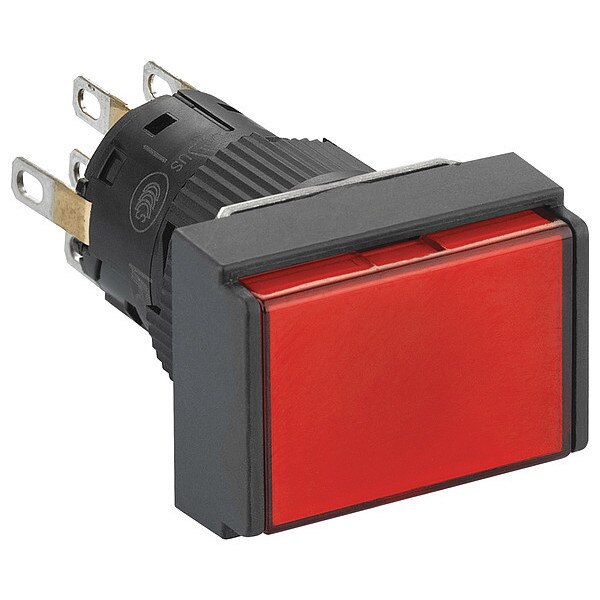

Push Button, 16 mm, 2 CO, Red

SKU
Brand Schneider Electric
Categories
Description Push Button, 16 mm, Momentary, Type of Operator Rectangular Flush Button, Basic Material Plastic, 2 CO Contact Form, Plastic Bezel, Color Red, Lamp Module Voltage 24V DC, Lamp Type LED, Lamp Voltage 24V DC, Contact Rating 0.15A @ 125 V DC, 0.2A @ 125 V DC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC, NEMA Contact Rating Designation AC-12/AC-13/DC-12/DC-13, Number of Operators 1, IP Rating 65, Legend No Legend, Legend/Background Color No Legend
graingerSKU: 55WU85, mscSKU: , zoro_no: G3460573, mongo_id: 65bbe76a9a749db822736f76

Web Price

$19.11 / each

Qty

Minimum order: 5

Product Details

Action Momentary

Ambient Air Temperature For Operation -10-55ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Plastic

Bezel Material plastic

Color Red

Connections - Terminals insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mmÃÂ² AWG 19 || fast connector socket

Contact Form 2 CO

Contact Operation snap action

Contact Rating 0.15A @ 125 V DC, 0.2A @ 125 V DC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC

Contact Resistance 50 mOhm 1/6 V

Contact Type 2C/O

Contacts Material gold-flashed silver

Contacts Type And Composition 2 C/O

Country of Origin (subject to change) China

Current Consumption 10 mA

Device Short Name XB6E

Electrical Durability 100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C

Ip Degree Of Protection IP65 IEC 60529

IP Rating 65

Lamp Module Voltage 24V DC

Lamp Type LED

Lamp Voltage 24V DC

Legend No Legend

Legend Markings No Legend

Legend/Background Color No Legend

Light Source integral LED

Marking CE

Mechanical Durability 1000000 cycles

Mounting Diameter 16 mm

NEMA Contact Rating Designation AC-12/AC-13/DC-12/DC-13

Number of Operators 1

Operating Position any position

Operator Profile red flush

Package Quantity 1

Product Certifications cURus || CCC

Product Or Component Type illuminated monolithic push-button

Shape Of Signaling Unit Head rectangular

Shock Resistance 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 2 A cartridge fuse gG

Signalling Type steady

Size 16 mm

Standards CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C 4520, JIS C 852, UL 508

Terminal Connection Quick Connect

Type of Operator Rectangular Flush Button

Vibration Resistance 1 mm 10-55 Hz)IEC 60068-2-6

Voltage 24 V DC

[Ie] Rated Operational Current 1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IEC 60947-5-1 || 0.15 A 125 V, DC-13 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 3 A fast connector socket) || 5 A

[Us] Rated Supply Voltage 24 V DC polarised
