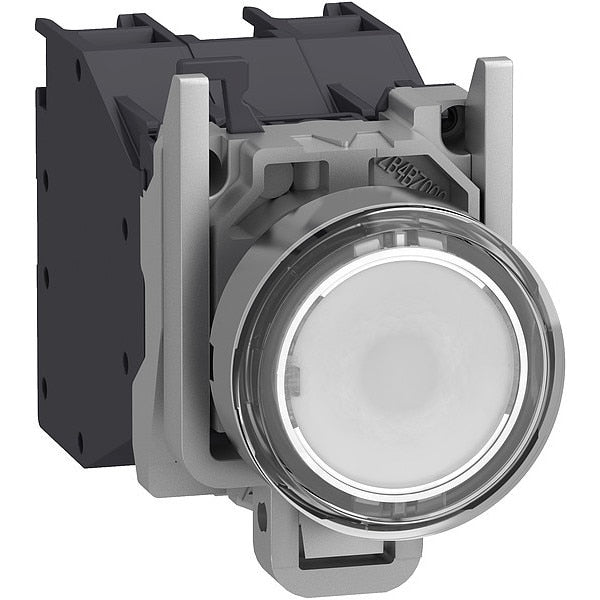

Push Button, 22 mm, 1NO, White

SKU
Brand Schneider Electric
Categories
Description Push Button, 22 mm, Momentary, Type of Operator Extended Illuminated, Metal Head Material, 1NO Contact Form, Metal Bezel, Color White, Lamp Module Voltage 24 to 254V AC/DC, Lamp Type LED, Lamp Voltage 24 to 254 V AC/DC, Contact Rating 10 A @ 415V AC, Number of Operators 1, IP Rating 66, Standards CSA, IEC, UL, Terminal Connection Screw Clamp

Web Price

$264.99 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -20-75ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Metal

Bezel Material chromium plated metal

Color White

Connections - Terminals screw clamp terminals, 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO

Contact Operation slow-break

Contact Rating 10 A @ 415V AC

Contacts Type And Composition 1 NO

Country of Origin (subject to change) France

Current Consumption 2 to 10 mA

Depth 72 mm

Device Mounting fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1

Device Short Name XB4

Dust Zone zone 21 - 22

Embedding Depth 58 mm

Fixing Center >= 30 x 40 mm support panel) 1-6 mm

Fixing Collar Material zamak

Gas Zone zone 1 - 2

Head Material Metal

Height 30 mm

Ip Degree Of Protection IP66 IEC 60529

IP Rating 66

Lamp Module Voltage 24 to 254V AC/DC

Lamp Type LED

Lamp Voltage 24 to 254 V AC/DC

Light Source integral LED

Marking II 2 GD || Ex tb IIIC Db || Ex db eb mb IIC Gb

Mechanical Durability 5000000 cycles

Mounting Diameter 22 mm

Number of Operators 1

Operating Force 3.962 N

Operating Travel 1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)

Operator Additional Information booted (clear silicon)

Operator Profile white flush

Overvoltage Category I IEC 60536

Package Quantity 1

Positive Opening without

Product Certifications INERIS 04ATEX9004U

Product Or Component Type complete illuminated push-button

Protective Treatment TH

Safety Rating Zone 2

Shape Of Signaling Unit Head round

Signalling Type steady

Size 22 mm

Standards CSA, IEC, UL

Terminal Connection Screw Clamp

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Extended Illuminated

Width 46.2 mm

[Ie] Rated Operational Current 1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 415 V

[Us] Rated Supply Voltage 24 to 254 V AC/DC
