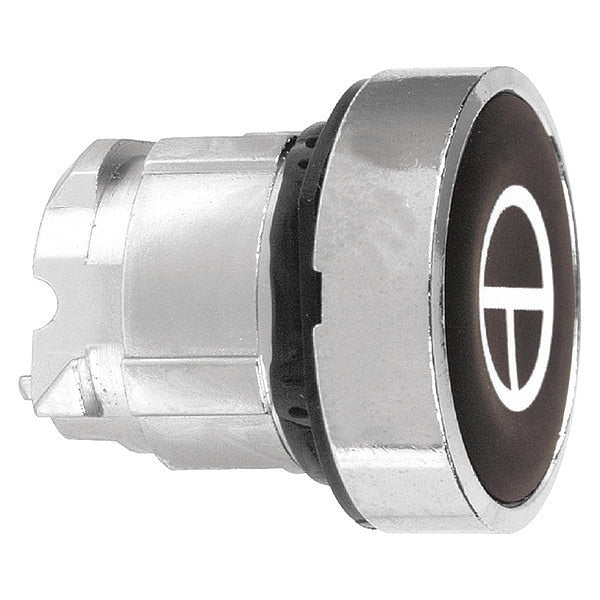

Push-Button, 22 mm, Black

SKU
Brand Schneider Electric
Categories
Description Push-Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Chromium Plated Metal, Color Black, NEMA Rating 13, 4X, IP Rating 66, 67, 69, 69K, Legend T, Legend/Background Color White/Black, Standards BV, CSA C22.2 No 14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, JIS C8201-1, JIS C8201-5-1, LROS (Lloyds register of shipping), RINA, UL 508

Web Price

$18.74 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Material Chromium Plated Metal

Cad Overall Depth 28 mm

Cad Overall Height 29 mm

Cad Overall Width 29 mm

Color Black

Country of Origin (subject to change) France

Device Presentation basic element

Device Short Name ZB4

Electrical Composition Code C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting

Features 1000000 Cycles, Green Premium Product, Mercury Free, Pro Active Compliance

Head Material Metal

Head Type standard

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

IP Rating 66, 67, 69, 69K

Legend T

Legend/Background Color White/Black

Mechanical Durability 10000000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4X

Operator Profile black flush, T white)

Overvoltage Category class I IEC 60536

Package Quantity 1

Product Certifications GL || LROS (Lloyds register of shipping) || CSA || BV || DNV || UL Listed

Product Or Component Type head for non-illuminated push-button

Protective Treatment TH

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Size 22 mm

Standards BV, CSA C22.2 No 14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, JIS C8201-1, JIS C8201-5-1, LROS (Lloyds register of shipping), RINA, UL 508

Type of Operator Flush Button

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
