Name: Push-Button, 22 mm, Green, Red
Brand: Schneider Electric
SKU: G3460214
Price: 91.56 USD
Availability: InStock

Home / Push-Button, 22 mm, Green, Red

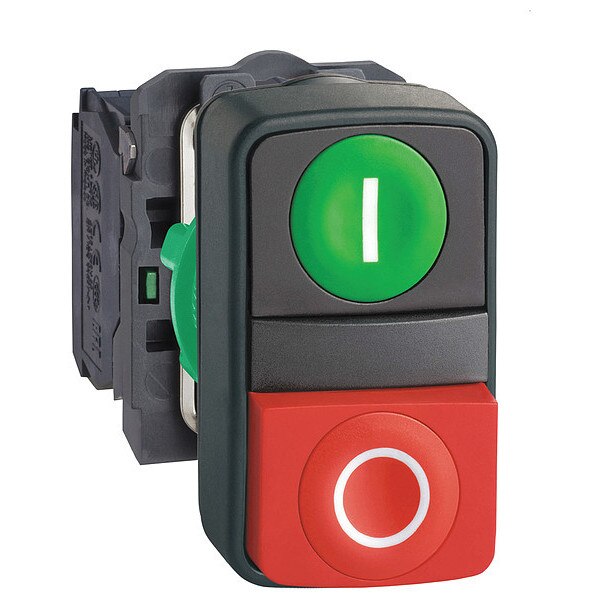

Push-Button, 22 mm, Green, Red

SKU
Brand Schneider Electric
Categories
Description Push-Button, 22 mm, Momentary / Momentary, Type of Operator (1) Flush Button, (1) Projecting, Basic Material Plastic, Bezel Material Plastic, Color Green, Red, NEMA Rating 13, 4X, IP Rating 67, 69, 69K, Legend I, O, Legend/Background Color White/Green, White/Red, Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, Includes 10 A Cartridge Fuse, Features 1000000 Cycle, Green Premium Product, Slow Break

Web Price

$91.56 / each

Qty

Product Details

Action Momentary / Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Material Plastic

Color Green, Red

Colour Of Marking white marking when green, red or black caps || black marking when white caps

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Operation slow-break

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Depth 59 mm

Device Presentation complete product

Device Short Name XB5

Electrical Durability 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Features 1000000 Cycle, Green Premium Product, Slow Break

Fixing Collar Material plastic

Head Type standard

Height 50 mm

Ik Degree Of Protection IK03 IEC 50102

Includes 10 A Cartridge Fuse

Ip Degree Of Protection IP67 IEC 60529 || IP69 || IP69K

IP Rating 67, 69, 69K

Legend I, O

Legend/Background Color White/Green, White/Red

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4X

Operating Force 3.5 N NC changing electrical state || 3.8 N NO changing electrical state

Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Profile red projecting, O white) || black flush, I white), 1 flush - 1 projecting push-buttons

Operators Description black ''I'' - red ''O''

Overvoltage Category class II IEC 60536

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications UL Listed || LROS (Lloyds register of shipping) || GL || DNV || BV || CSA

Product Or Component Type double-headed push-button

Protective Treatment TH

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508

Terminals Description Iso NÃÂ°1 (13-14)NO || (21-22)NC

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator (1) Flush Button, (1) Projecting

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

Width 30 mm

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
