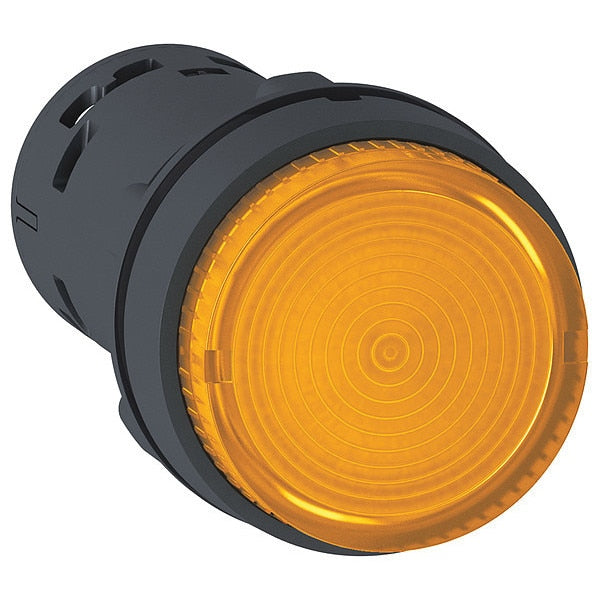

Push-button, 22 mm, Orange

SKU
Brand Schneider Electric
Categories
Description Push-button, 22 mm, Momentary, Type of Operator Extended Button, Lamp Module Voltage 24V AC/DC, Color Orange, Lamp Type LED, Lamp Voltage 24V AC/DC, Replacement Lamp Not Applicable, NEMA Rating 12, IP Rating 20, 65, Legend No Legend, Legend/Background Color No Legend, Standards UL 508,JIS C8201-5-1,CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,JIS C8201-1, Terminal Connection Screw Clamp

Web Price

$77.11 / each

Qty

Minimum order: 10

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bulb Base integral LED

Cad Overall Depth 57.5 mm

Cad Overall Height 29 mm

Cad Overall Width 29 mm

Color Orange

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Operation slow-break

Contacts Type And Composition 1 NO

Country of Origin (subject to change) Indonesia

Current Consumption 18 to 27 mA

Device Mounting fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

Device Presentation monolithic product

Device Short Name XB7

Electrical Durability 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ <= 10exp(-6) 17 V 5 mA EN/IEC 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Electromagnetic Emission class B EN 55011

Fixing Center >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

Fixing Mode fixing nut beneath head 2-2.4 N.m

Ip Degree Of Protection IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

IP Rating 20, 65

Lamp Module Voltage 24V AC/DC

Lamp Type LED

Lamp Voltage 24V AC/DC

Legend No Legend

Legend/Background Color No Legend

Light Source LED

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 12 UL 50 E

NEMA Rating 12

Operator Profile orange projecting, unmarked

Package Quantity 1

Positive Opening with (only NO)

Product Certifications GOST || CCC

Product Or Component Type illuminated push-button

Protective Treatment TH

Replacement Lamp Not Applicable

Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration

Short-Circuit Protection 4 A cartridge fuse gG EN/IEC 60947-5-1

Signalling Type steady

Size 22 mm

Standards UL 508,JIS C8201-5-1,CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,JIS C8201-1

Supply Voltage Limits 19.2-30 V DC || 21.6-26.4 V AC

Terminal Connection Screw Clamp

Terminals Description Iso NÃÂ°1 (13-14)NO

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Extended Button

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1

[Us] Rated Supply Voltage 24 V AC/DC
