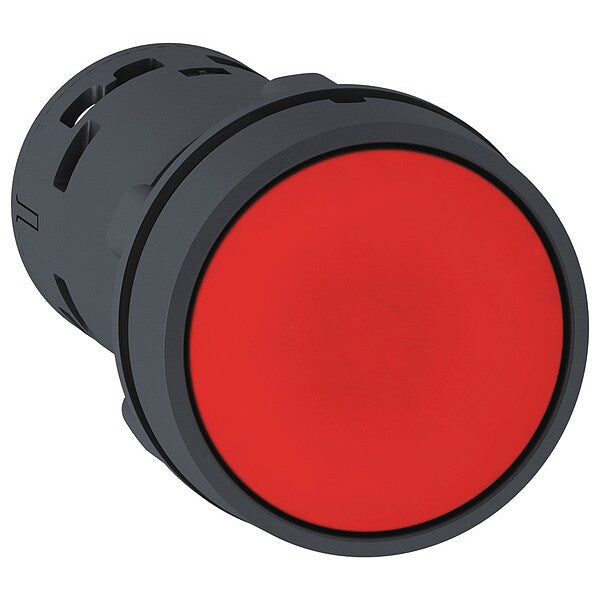

Push-Button, 22 mm, Red

SKU
Brand Schneider Electric
Categories
Description Push-Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 12, 3, IP Rating 20, 65, Legend No Legend, Legend/Background Color No Legend, Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, UL 508, Includes 4A Cartridge Fuse, Features 1000000 Cycle, Green Premium Product, Monolithic Product, Slow Break
graingerSKU: , mscSKU: , zoro_no: G3458498, mongo_id: 65bbe89022d7a989a98ff240

Web Price

$29.69 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Material Plastic

Cad Overall Depth 51.5 mm

Cad Overall Height 29 mm

Cad Overall Width 29 mm

Color Red

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Operation slow-break

Contacts Type And Composition 1 NO + 1 NC

Country of Origin (subject to change) Indonesia

Device Mounting fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

Device Presentation monolithic product

Device Short Name XB7

Electrical Durability 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4

Features 1000000 Cycle, Green Premium Product, Monolithic Product, Slow Break

Fixing Center >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

Fixing Mode fixing nut beneath head 2-2.4 N.m

Head Material Plastic

Includes 4A Cartridge Fuse

Ip Degree Of Protection IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

IP Rating 20, 65

Legend No Legend

Legend/Background Color No Legend

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 12 UL 50 E || NEMA 3 UL 50 E

NEMA Rating 12, 3

Operator Profile red flush, unmarked

Overvoltage Category class II IEC 61140

Package Quantity 1

Positive Opening with NC contact EN/IEC 60947-5-1 appendix K

Product Certifications CCC || GOST

Product Or Component Type push-button

Protective Treatment TH

Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 4 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, UL 508

Terminals Description Iso NÃÂ°1 (13-14)NO || (21-22)NC

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Flush Button

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
