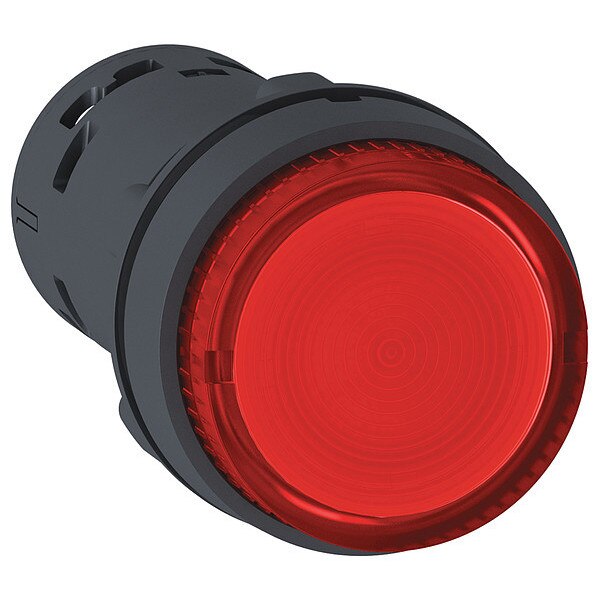

Push-button, 22 mm, Red

SKU
Brand Schneider Electric
Categories
Description Push-button, 22 mm, Momentary, Type of Operator Extended Button, Lamp Module Voltage 120V AC, Color Red, Lamp Type LED, Lamp Voltage 120V AC, Replacement Lamp Not Applicable, NEMA Rating 12, IP Rating 20, 65, Legend No Legend, Legend/Background Color No Legend, Standards UL 508,EN/IEC 60947-1,CSA C22.2 No 14,JIS C8201-5-1,EN/IEC 60947-5-1,JIS C8201-1, Terminal Connection Screw Clamp
graingerSKU: null, mscSKU: null, zoro_no: G3458376, mongo_id: 65bbe5d13aaddbd5a9fea710

Web Price

$74.74 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bulb Base integral LED

Cad Overall Depth 57.5 mm

Cad Overall Height 29 mm

Cad Overall Width 29 mm

Color Red

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Operation slow-break

Contacts Type And Composition 1 NO

Country of Origin (subject to change) Indonesia

Current Consumption 12 to 17 mA

Device Mounting fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

Device Presentation monolithic product

Device Short Name XB7

Electrical Durability 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ <= 10exp(-6) 17 V 5 mA EN/IEC 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Electromagnetic Emission class B EN 55011

Fixing Center >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

Fixing Mode fixing nut beneath head 2-2.4 N.m

Ip Degree Of Protection IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

IP Rating 20, 65

Lamp Module Voltage 120V AC

Lamp Type LED

Lamp Voltage 120V AC

Legend No Legend

Legend/Background Color No Legend

Light Source LED

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 12 UL 50 E

NEMA Rating 12

Operator Profile red projecting, unmarked

Package Quantity 1

Positive Opening with (only NO)

Product Certifications CCC || GOST

Product Or Component Type illuminated push-button

Protective Treatment TH

Replacement Lamp Not Applicable

Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration

Short-Circuit Protection 4 A cartridge fuse gG EN/IEC 60947-5-1

Signalling Type steady

Size 22 mm

Standards UL 508,EN/IEC 60947-1,CSA C22.2 No 14,JIS C8201-5-1,EN/IEC 60947-5-1,JIS C8201-1

Supply Voltage Limits 100-132 V AC

Terminal Connection Screw Clamp

Terminals Description Iso NÃÂ°1 (13-14)NO

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Extended Button

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1

[Us] Rated Supply Voltage 120 V AC 50/60 Hz
