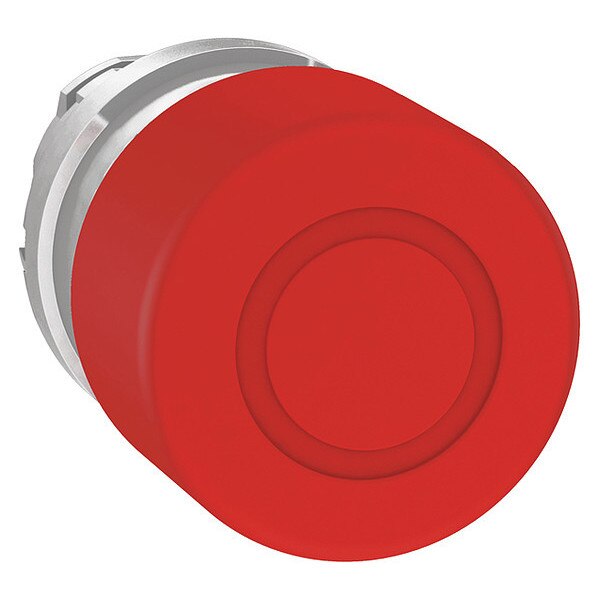

Push-Button, 22 mm, Red

SKU
Brand Schneider Electric
Categories
Description Push-Button, 22 mm, Maintained Push / Maintained Pull, Type of Operator 40mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Chromium Plated Metal, Color Red, NEMA Rating 12, 13, 4, 4X, IP Rating 66, 67, 69, 69K, Legend No Legend, Legend/Background Color No Legend

Web Price

$51.44 / each

Qty

Product Details

Action Maintained Push / Maintained Pull

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Material Chromium Plated Metal

Cad Overall Depth 56 mm

Cad Overall Height 40 mm

Cad Overall Width 40 mm

Color Red

Country of Origin (subject to change) Czechia

Device Short Name ZB4

Electrical Composition Code C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting

Electrical Shock Protection Class class I IEC 61140

Features 300000 Cycles, Green Premium Product, Mercury Free, Pro Active Compliance

Head Material Metal

Head Type standard

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

IP Rating 66, 67, 69, 69K

Legend No Legend

Legend/Background Color No Legend

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12

NEMA Rating 12, 13, 4, 4X

Operator Profile red mushroom ÃÂ 40 mm, unmarked

Package Quantity 1

Product Certifications GL || LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || BV

Product Or Component Type head for emergency switching off push-button

Protective Treatment TH

Reset push-pull

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Size 22 mm

Standards BV, CSA C22.2 No 14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, GL, IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, LROS (Lloyds register of shipping), RINA, UL 508

Type of Operator 40mm Mushroom Head

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
