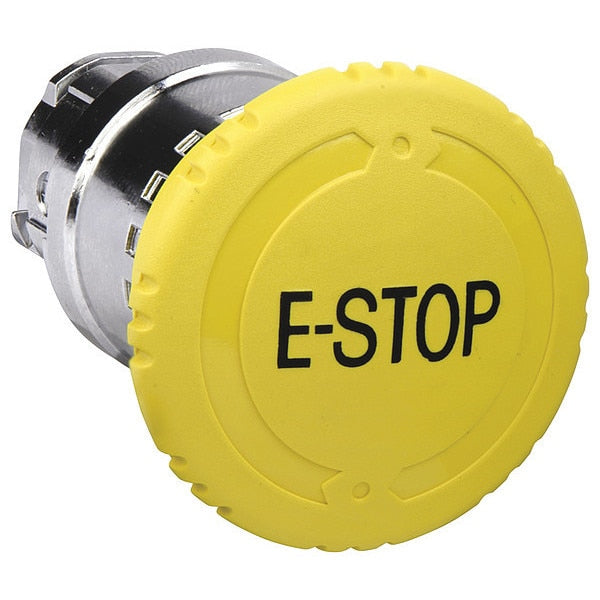

Push-Button, 22 mm, Yellow

SKU
Brand Schneider Electric
Categories
Description Push-Button, 22 mm, Maintained Push / Turn To Release, Type of Operator 40mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Chromium Plated Metal, Color Yellow, NEMA Rating 13, 4X, IP Rating 66, 67, 69, 69K, Legend E-Stop, Legend/Background Color Black/Yellow, Standards BV, CSA C22.2 No 14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, JIS C8201-1, JIS C8201-5-1, LROS (Lloyds register of shipping), RINA, UL 508
graingerSKU: 55WG39, mscSKU: , zoro_no: G3461517, mongo_id: 65bbe9ba22d7a989a997216b

Web Price

$94.44 / each

Qty

Minimum order: 42

Product Details

Action Maintained Push / Turn To Release

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Material Chromium Plated Metal

Cad Overall Depth 57 mm

Cad Overall Height 40 mm

Cad Overall Width 40 mm

Color Yellow

Country of Origin (subject to change) Czechia

Device Short Name ZB4

Electrical Composition Code C11 3 single front mounting || C15 1 single front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting

Features 300000 Cycles, Green Premium Product, Mercury Free, Pro Active Compliance

Head Material Metal

Head Type standard

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

IP Rating 66, 67, 69, 69K

Legend E-Stop

Legend/Background Color Black/Yellow

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4X

Overvoltage Category class I IEC 60536

Package Quantity 1

Product Certifications UL Listed || DNV || CSA || BV || GL || LROS (Lloyds register of shipping)

Product Or Component Type head for non-illuminated push-button

Protective Treatment TH

Reset turn to release

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Size 22 mm

Standards BV, CSA C22.2 No 14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, JIS C8201-1, JIS C8201-5-1, LROS (Lloyds register of shipping), RINA, UL 508

Type of Operator 40mm Mushroom Head

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
