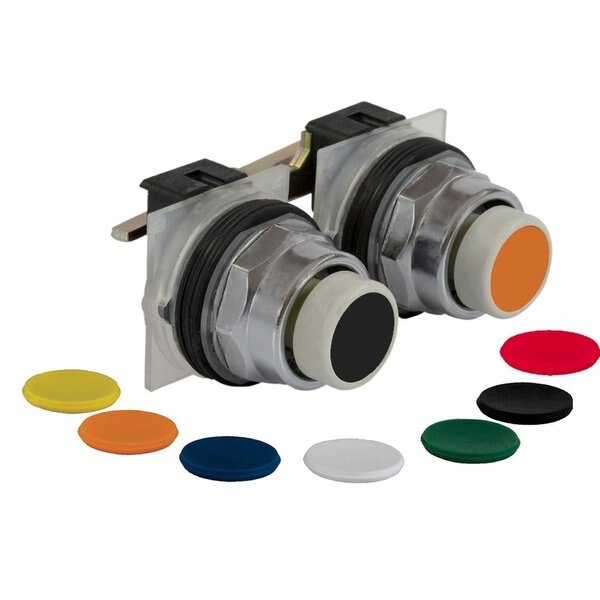

PUSH BUTTON 600VAC 10A 30MM T-K

SKU
Brand Schneider Electric
Categories
Description PUSH BUTTON 600VAC 10A 30MM T-K
graingerSKU: , mscSKU: , zoro_no: G3308362, mongo_id: 65bbe92822d7a989a993aee5

Web Price

$241.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material metal

Connections - Terminals screw clamp terminals 1 x 0.22 to 2 x 1.5 mmÃÂ² EN/IEC 60947-1

Contacts Material silver alloy contacts

Contacts Type And Composition 2 C/O

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001K

Electrical Shock Protection Class class II IEC 61140

Ip Degree Of Protection IP66 IEC 60529

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

Operating Position any position

Operator Profile flush 7 colours choice unmarked

Package Quantity 1

Positive Opening without

Product Certifications NEMA || UL 508

Product Or Component Type double-headed push-button

Protective Treatment TC

Rated Breaking Capacity 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head octagonal

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse EN/IEC 60947-5-1

Standards JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-1

Tightening Torque 0.8-0.8 N.m IEC 60947-1

Type Of Operator 2 stay put

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
