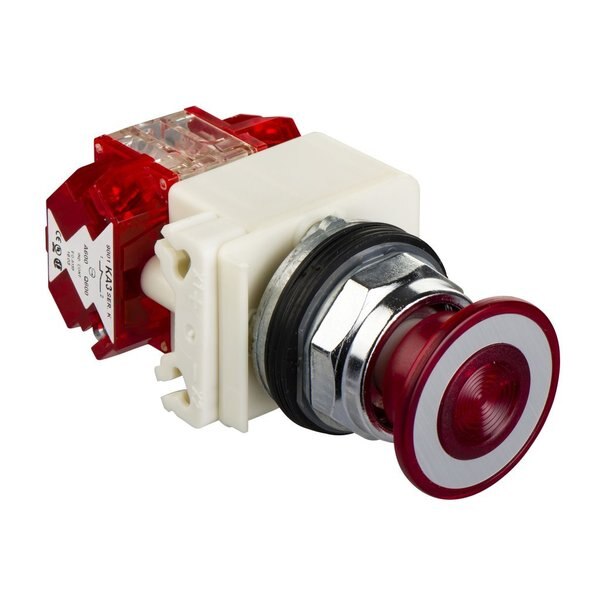

PUSH BUTTON 600VAC 10A 30MM T-K

SKU
Brand Schneider Electric
Categories
Description PUSH BUTTON 600VAC 10A 30MM T-K
graingerSKU: , mscSKU: , zoro_no: G3301189, mongo_id: 65bbe94f22d7a989a99494bf

Web Price

$327.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material metal

Bulb Base BA 9s

Cad Overall Depth 103 mm

Cad Overall Height 42 mm

Cad Overall Width 54 mm

Connections - Terminals screw clamp terminals, 1 x 0.22 to 2 x 1.5 mmÃÂ² IEC 60947-1

Contacts Material silver alloy contacts

Contacts Type And Composition 1 NC late-break || 1 NC slow-break, 1 NC late break + 1 NC

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001K

Electrical Shock Protection Class class II IEC 61140

Ip Degree Of Protection IP66 IEC 60529

Light Block Supply direct

Light Source incandescent

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4

Operating Position any position

Operator Additional Information screw-on plastic

Operator Position Information 2 positions

Operator Profile red mushroom ÃÂ 41 mm, unmarked

Package Quantity 1

Positive Opening with IEC 60947-5-2

Product Certifications UL 508 || NEMA

Product Or Component Type illuminated push-button

Protective Treatment TC

Rated Breaking Capacity 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head round

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse IEC 60947-5-1

Standards JIS C 4520 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || JIS C 852

Terminals Description Iso NÃÂ°1 (11-12)NC_OL || (21-22)NC

Tightening Torque 0.8-0.8 N.m IEC 60947-1

Type Of Operator push-pull

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1

[Us] Rated Supply Voltage 24 to 28 V AC/DC
