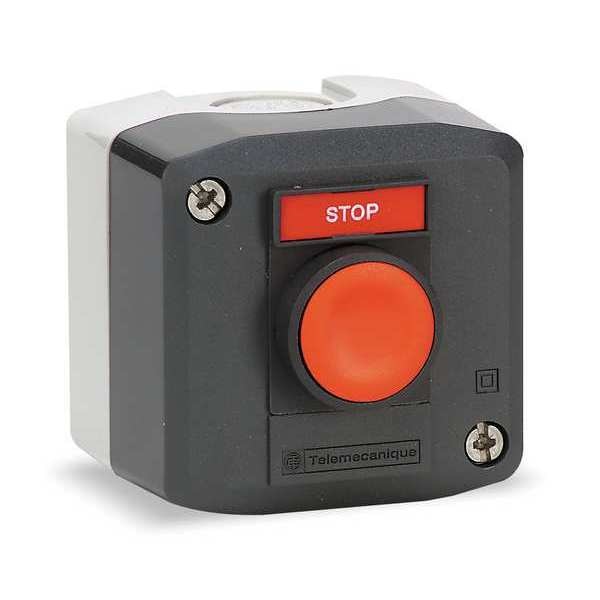

Push Button Contrl Station, 1NC, Stop, 22mm

SKU
Brand Schneider Electric
Categories
Description Push Button Control Station, Number of Operators 1, Size 22 mm, Legend Stop, Type of Operator Push Button, Action Momentary, Operator Color Red, Contact Form 1NC, Mechanical Interlock No, NEMA Rating 13, 4X, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, IP Rating 65, Height 2 in, Width 2.68 in, Depth 2.68 in, Enclosure Material Polycarbonate, Enclosure Color Light Gray and Dark Gray
graingerSKU: , mscSKU: , zoro_no: G0282703, mongo_id: 65bbe6173aaddbd5a900757f

Web Price

$71.44 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Application stop function

Basic Material polycarbonate

Cable Entry 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm

Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mmÃÂ² with cable end IEC 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mmÃÂ² without cable end IEC 60947-1

Contact Form 1NC

Contact Operation Slow-break

Contact Rating 10A @ 600V AC, 2.5A @ 24V DC

Contacts Material Silver alloy (Ag/Ni)

Control Station Composition 1 flush push-button, red 1 NC STOP

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Cover Color Dark Gray RAL 7016)

Depth 2.68 in

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Reliability Less than 10exp(-6) 5 V 1 mA IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA IEC 60947-5-4

Enclosure Base Cover Light Gray RAL 7035)

Enclosure Color Light Gray and Dark Gray

Enclosure Material Polycarbonate

Green Environmental Attribute RoHS 2011/65/EU Compliant

Height 2 in

Housing Color light grey RAL 7035)

IK Degree Of Protection IK03 IEC 62262

IP Degree Of Protection IP66 IEC 60529; IP67; IP69; IP69K

IP Rating 65

Legend Stop

Marking Location Marking on legend holder

Mechanical Durability 5000000 cycles

Mechanical Interlock No

NEMA Contact Rating Designation A600/Q600

NEMA Degree Of Protection NEMA 13; NEMA 4X

NEMA Rating 13, 4X

Number of Operators 1

Operating Force 3.5 N NC changing electrical state

Operating Travel 0.06 in (1.5 mm) NC changing electrical state); 0.17 in (4.3 mm) total travel)

Operator Color Red

Operator Profile 1 flush push-button

Overvoltage Category Class II IEC 60536

Package Quantity 1

Positive Opening With IEC 60947-5-1 appendix K

Product Certifications CSA; UL Listed

Product Destination For XB5 22 mm control and signalling units

Product Or Component Type Complete control station

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Current 6 A 120 V, AC-15, A600 IEC 60947-5-1; 3 A 240 V, AC-15, A600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1

Resistance To High Pressure Washer 1015.26 psi (7000000 Pa) 131ÃÂ°F (55ÃÂ°C) 0.1 m

Shape Of Screw Head Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1

Size 22 mm

Standards EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 ||CSA || UL Listed

Terminal Connection screw clamp terminal

Tightening Torque 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1

Type of Operator Push Button

Vibration Resistance 5 gn 12 to 500 Hz)IEC 60068-2-6

Voltage 600 V

Width 2.68 in
