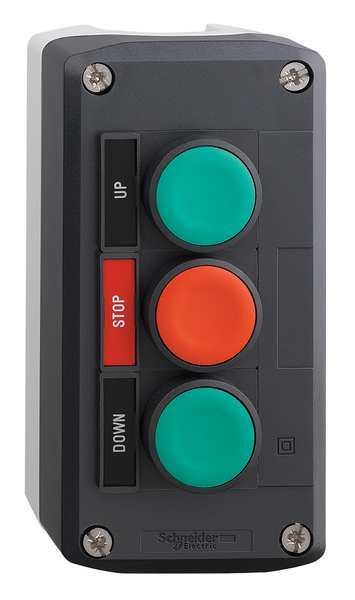

Push Button Control Station, Up/Stop/Down

SKU
Brand Schneider Electric
Categories
Description Push Button Control Station, Number of Operators 3, Size 22 mm, Legend Up/Stop/Down, Type of Operator Push Button/Push Button/Push Button, Action Momentary / Momentary / Momentary, Operator Color Green/Red/Green, Contact Form 2NO/1NC, Mechanical Interlock No, NEMA Rating 13, 4X, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, Height 2 in, Width 2.68 in, Depth 5.27 in, Enclosure Material Polycarbonate, Enclosure Color Light Gray and Dark Gray
graingerSKU: 6HK30, mscSKU: 69677128, zoro_no: G1650993, mongo_id: 65bbea2f22d7a989a999d13a

Web Price

$148.74 / each

Qty

Product Details

Action Momentary / Momentary / Momentary

Ambient Air Temperature For Operation -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Application three functions

Basic Material polycarbonate

Cable Entry 2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm

Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 2NO/1NC

Contact Operation Slow-break

Contact Rating 10A @ 600V AC, 2.5A @ 24V DC

Contacts Material Silver alloy (Ag/Ni)

Control Station Composition 1 flush push-button, red 1 NC O; 1 flush push-button, green 1 NO down; 1 flush push-button, green 1 NO UP

Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

Country of Origin (subject to change) France

Cover Color Dark Gray RAL 7016)

Depth 5.27 in

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability Less than 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4

Electrical Shock Protection Class Class II IEC 60536

Enclosure Base Cover Light Gray RAL 7035)

Enclosure Color Light Gray and Dark Gray

Enclosure Material Polycarbonate

Green Environmental Attribute RoHS 2011/65/EU Compliant

Height 2 in

Housing Color light grey RAL 7035)

IK Degree Of Protection IK03 EN 50102

IP Degree Of Protection IP66 IEC 60529; IP69; IP69K; IP67

IP Rating IP66 IEC 60529 || IP69 || IP69K || IP67

Legend Up/Stop/Down

Marking Location Marking on legend holder

Mechanical Durability 10000000 cycles

Mechanical Interlock No

NEMA Contact Rating Designation A600/Q600

NEMA Degree Of Protection NEMA 13; NEMA 4X

NEMA Rating 13, 4X

Number of Operators 3

Operating Force 3.5 N NC changing electrical state; 3.8 N NO changing electrical state

Operating Travel 0.06 in (1.5 mm) NC changing electrical state); 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)

Operator Color Green/Red/Green

Operator Profile 3 flush push-buttons

Package Quantity 1

Positive Opening With EN/IEC 60947-5-1 appendix K

Product Certifications UL Listed; CSA

Product Destination For XB5 22 mm control and signalling units

Product Or Component Type Complete control station

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

Rated Insulation Voltage 600 V 3)EN/IEC 60947-1

Rated Operational Current 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1; 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1

Resistance To High Pressure Washer 1015.26 psi (7000000 Pa) 131ÃÂ°F (55ÃÂ°C) 0.1 m

Shape Of Screw Head Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL Listed || CSA

Terminal Connection screw clamp terminal

Tightening Torque 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) EN/IEC 60947-1

Type of Operator Push Button/Push Button/Push Button

Vibration Resistance 5 gn 12 to 500 Hz)IEC 60068-2-6

Voltage 600 V

Width 2.68 in
