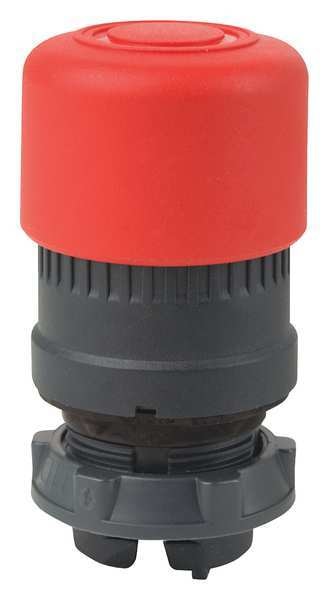

Push Button operator, 30 mm, Red

SKU
Brand Schneider Electric
Categories
Description Push Button Operator, 30 mm, Maintained Push, Type of Operator Extended Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 66, Legend No Legend, Standards CSA C22.2 N.14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, GB 14048.5, JIS C 4520, UL508
graingerSKU: 33HP43, mscSKU: 69675684, zoro_no: G8581483, mongo_id: 65bbe80e22d7a989a98d42df

Web Price

$55.99 / each

Product Details

Accessory Group Push Buttons

Action Maintained Push

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Material Plastic

Cad Overall Depth 56 mm

Cad Overall Height 30 mm

Cad Overall Width 30 mm

Color Red

Compatibility Code ZB5

Country of Origin (subject to change) Czechia

Device Presentation basic element

Device Short Name ZB5

Electrical Composition Code C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting

Head Material Plastic

Head Type standard

Ik Degree Of Protection IK03 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

IP Rating 66

Legend No Legend

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 1, 12, 13, 2, 3, 4, 4X

Number of Operators 1

Operator Profile red mushroom ÃÂ 30 mm, unmarked

Overvoltage Category class II IEC 60536

Package Quantity 1

Product Certifications LROS (Lloyds register of shipping) || DNV || CSA || UL Listed || BV || GL

Product Destination emergency stop push-button

Product Or Component Type head for emergency stop push-button

Product Type Push Button Operator

Protective Treatment TH

Reset push-pull

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Size 30 mm

Standards CSA C22.2 N.14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, GB 14048.5, JIS C 4520, UL508

Station Name XALD 1 to 5 cut-outs || XALK 1 to 5 cut-outs

Type of Operator Extended Button

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
