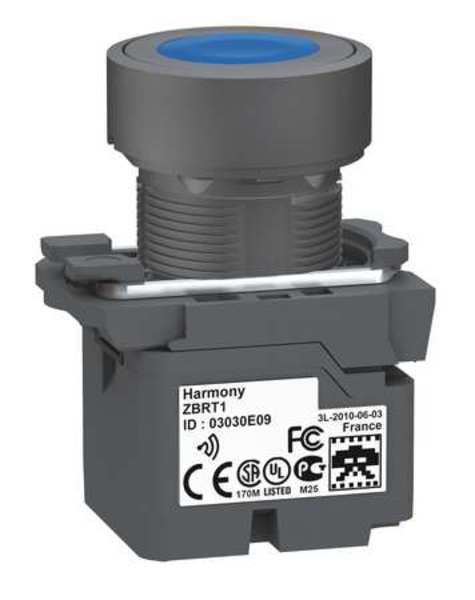

Push Button with Transmitter, 22 mm, Blue

SKU
Brand Schneider Electric
Categories
Description Push Button with Transmitter, Color Blue, Action Momentary, Material Plastic, NEMA Rating 12, IP Rating 30, Number of Operators 1, Size 22 mm, Type of Operator Flush Push Button, Height 1.3 in, Width 3.39 in, Length 2.05 in, Legend Markings No Legend, Standards UL/CSA
graingerSKU: 12Z283, mscSKU: , zoro_no: G4188073, mongo_id: 65bbe9ba22d7a989a9972186

Web Price

$146.24 / each

Product Details

Acquisition Time 2 ms

Action Momentary

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Antenna Gain 0 dBi

Antenna Type omnidirectional

Bandwidth 5-5 MHz

Bezel Material dark grey plastic

Cad Overall Depth 43 mm

Cad Overall Height 41.5 mm

Cad Overall Width 30 mm

Color Blue

Communication Port Protocol Zigbee green power 2.4 GHz IEEE 802.15.4

Country of Origin (subject to change) France

Device Short Name XB5R

Electrical Composition Code PW1

Electromagnetic Compatibility electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80 to 3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000 to 6000 MHz, distance = 20 m) IEC 61000-4-3

Embedding Depth 42 mm

Emission Power 3 mW

Fixing Collar Material plastic

Fixing Mode fixing nut beneath head 2-2.4 N.m

Height 1.3 in

Ik Degree Of Protection IK03 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)

IP Rating 30

Legend Markings No Legend

Length 2.05 in

Length (Straight Wireway) 2.05 in

Level Or Class 5M00G7W

Material Plastic

Max Power Consumption In W 1 mW

Maximum Sensing Distance 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Mechanical Durability 1000000 cycles

Mechanical Robustness free fall resistance 1000 mm EN/IEC 60068-2-32

Modulation Technique O-QPSK

Mounting Diameter 22 mm

NEMA Rating 12

Number Of Channels 16

Number of Operators 1

Operating Force 10 N C/O changing electrical state

Operating Travel 4.3 mm total travel)

Operator Profile blue flush

Package Quantity 1

Product Certifications CCC || C-tick || CSA || GOST || BT 2006/95/EC || UL

Product Or Component Type wireless and batteryless transmitter

Radio Agreement ANATEL || ARIB T66 || FCC || ICASA || RSS

Relative Humidity 95-95 % -40-70ÃÂ°C without condensation

Response Time < 2 ms

Shape Of Signaling Unit Head round

Shock Resistance 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Size 22 mm

Standards UL/CSA

Station Name XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs

Transmission Frequency 2405 MHz

Type of Operator Flush Push Button

Vibration Resistance 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6

Width 3.39 in
