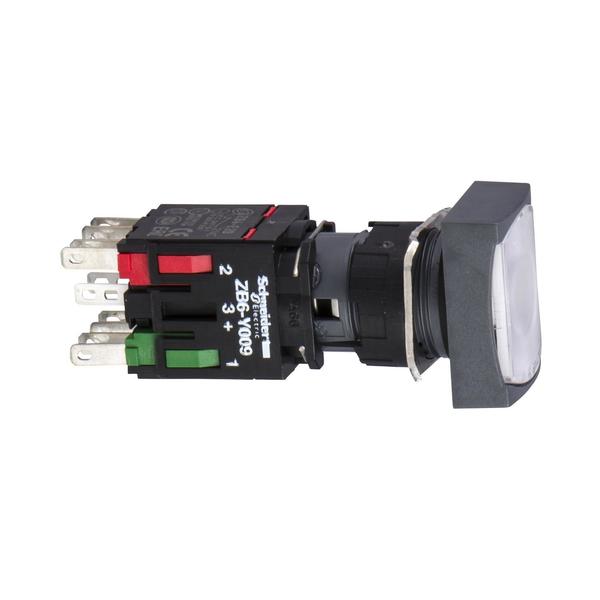

Pushbutton 240Vac 15Amp Xb6 +Options

SKU
Brand Schneider Electric
Categories
Description Pushbutton 240Vac 15Amp Xb6 +Options

Web Price

$54.19 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material plastic

Bulb Base integral LED

Cad Overall Depth 57 mm

Cad Overall Height 18 mm

Cad Overall Width 24 mm

Connections - Terminals Faston connectors 2.8 x 0.5 mm

Contact Operation slow-break

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Country of Origin (subject to change) Mexico

Current Consumption 15 mA

Device Short Name XB6

Electrical Durability 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Electromagnetic Emission class B IEC 55011

Ip Degree Of Protection IP65 IEC 60529

Light Source LED

Mounting Diameter 16 mm

Nema Degree Of Protection NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Operating Force 3.5 N NO changing electrical state || 4.5 N NC changing electrical state

Operating Position any position

Operating Travel 1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)

Operator Profile white flush, unmarked

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications GOST || UL || CCC || CSA

Product Or Component Type complete illuminated push-button

Protective Treatment TC

Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3

Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To Fast Transients 2 kV IEC 61000-4-4

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 6 A cartridge fuse gG

Signalling Type steady

Standards CSA C22.2 No 14 || JIS C 852 || JIS C 4520 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60947-1

Supply Voltage Limits 6-30 V AC/DC

Surge Withstand 1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

Terminals Description Iso NÃÂ°1 (21-22)NC || (13-14)NO

Type Of Operator spring return

Vibration Resistance +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1

[Us] Rated Supply Voltage 12 to 24 V AC/DC
